This is a

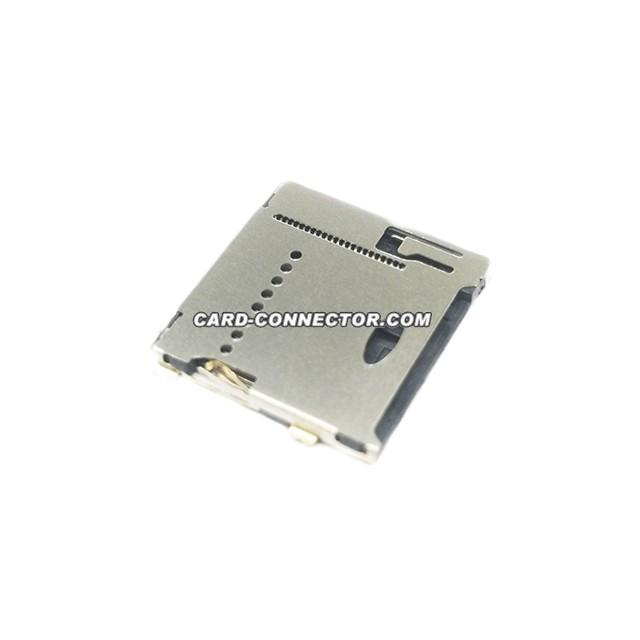

micro sd card connector with a height of 1.4mm, 8+1 pins, SMT type connector with post.
MATERIAL:
Insulator: High Temperature Thermoplastic,
UL 94V-0.
Contact: Copper Alloy
PLATING:
Contact: Plated 50u'' Ni Overall
Plated Au Selective Contact Area
Plated 100u'' Sn Over Ni On Solder Area
Shell: Plated 50u'' Ni Overall
Plated 1u"Au Selective Contact Area
Electrical:
Current Rating :0.5A
Voltage Rating :5V
Ambient Temperature Range :-25°C~+85°C
Storage Temperature Range :-25°C~+85°C
Ambient Humidity Range :95% R.H. Max.
Contact Resistance:100m max.
Insulation Resistance:1000M min./500VDC
Mating Cycles:10,000 Insertions
Peak temperature：260°C±5°C
Mating Cycles:5,000 Insertions
