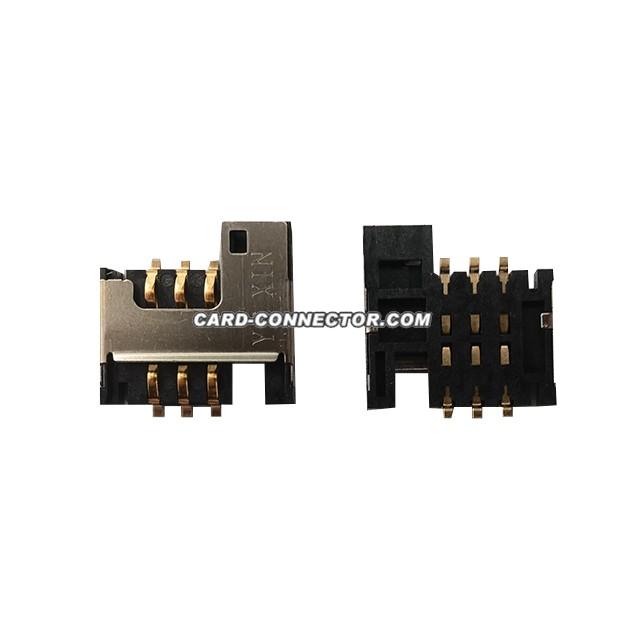

This is a 6pin non-switch,
sim card connector with iron shell, which can replace Amphenol's CAD06W7262.
notes:
1. Specifications
Contact Resistance:20mΩ max.
Insulation Resistance:1000MΩ min
Current Rating: 2A
Dielectric withstanding voltage:
AC 500V(r.m.s) /60s
Operating temperatuer:-55°C to +125°C
Recommend wave soldering
temperature260°,5-10s.
2. Materials:
Contact: copper alloy
housing :LCP
3. Product number code:KF-042NP
4. SMT TYPE
