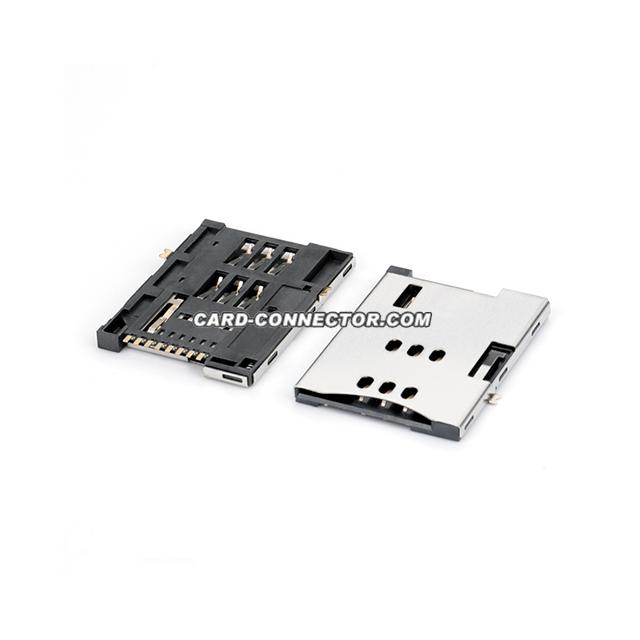

NOTE:
1. Material:
1-1 Housing:High Temperature Thermoplastic,
(LCP S475)Color Black UL 94V-0
1-2 Contact: Phosphor Bronze(C5210R-H,T=0.08±0.01mm)
1-3 Cover: SUS304-H T=0.10±0.03mm
2.Plating:
2-1 Contact terminal:
Contact area: Gold 1u" Min.
Solder area: Gold 0.8u" Min .
Underplating: Ni overall 50U" Min.
2-2 Cover:
Underplating: Ni overall 50U" Min.
Solder area: Gold 0.8u" Min .
3. Specification:
3-1.Current Rating :0.5mA AC/DC max.
3-2.Voltage Rating :125V AC/DC
3-3.Ambient Temperature Range :-20°C~+60°C
3-4.Storage Temperature Range :-40°C~+70°C
3-5.Ambient Humidity Range :95% R.H. Max.
3-6.Contact Resistance:100m max.
3-7.Insulation Resistance:1000M min./500VDC
