micro sd card connector z0y4z45zy

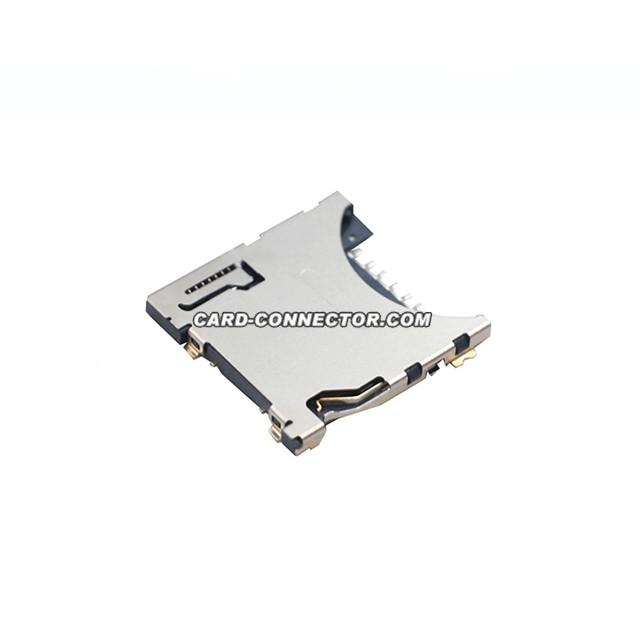

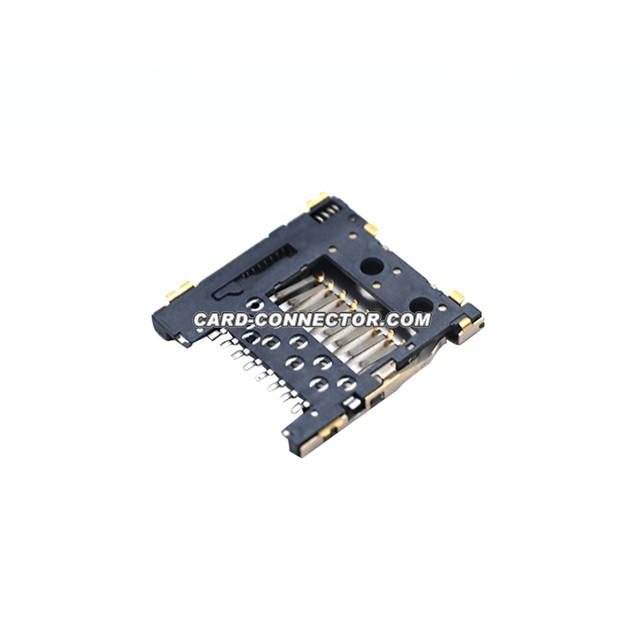

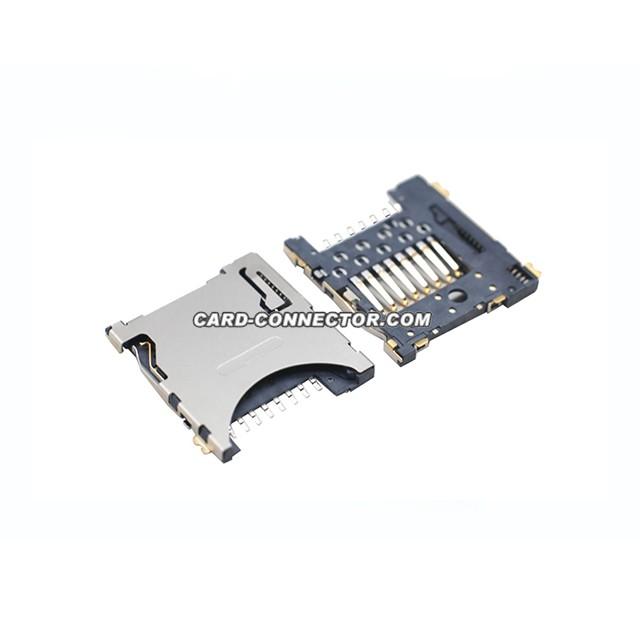

This is a push-push micro sd card connector with a height of 1.45mm.

It can replace molex's 5031821852.

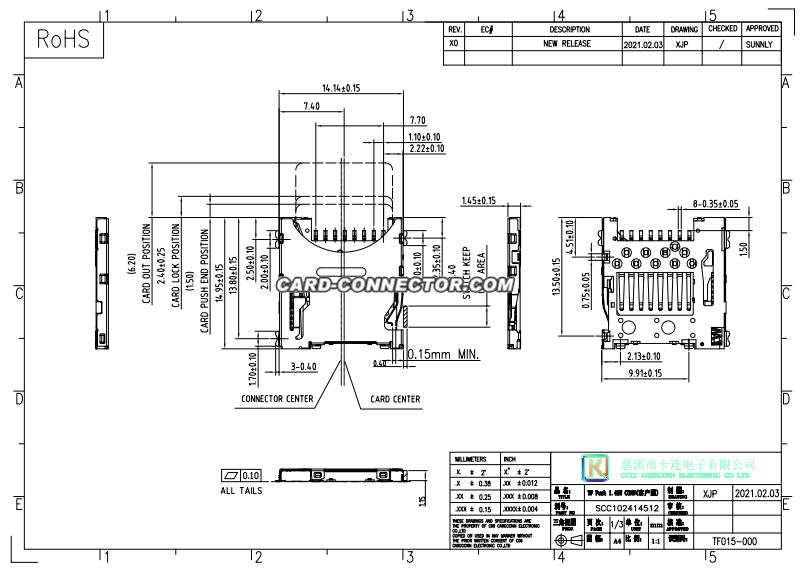

NOTES:

1. COPL ANARTY SPEC. FOR ALL SOLDER TAILS AND SOLDER PADS IS 0. 1mm MAX.

2. ELECTRICAL CHARACTERISTICS:

2-1. CURENT RATING: 0.5 Amp. MAX.

2-2.VOLTAGE: 100V DC. MAX.

2-3:
LOW LEVEL CONTACT RESISTANCE: 100 mOhms MAX. INITIALLY.

2-4. DIEL ECTRIC WITHSTANDING VOLTAGE: 500V AC MIN. FOR 1 MINUTE.

2-5. INSUL ATION RESISTANCE: (INITIAL) 1000MOhms MIN.. (FINAL ) 100MOhms MIN.

BY APPLYING 500V DC ON MATED AND UNMATED CONNECTORS THROUGH

MIL-STD- 202, METHOD 302.

3. MECHANICAL CHARACTERISTICS:

3-1. DURABILTY: 5000 CYCLES.

3-2. OPERATING TEMP. RANGE: -25°C TO 85'C. [INCLUDING TERMINAL TEMP. RISE]

3-3. STORAGE TEMP.: -40C TO 85C.

4. Solder ability:255±5'C, 5±0.5s.
