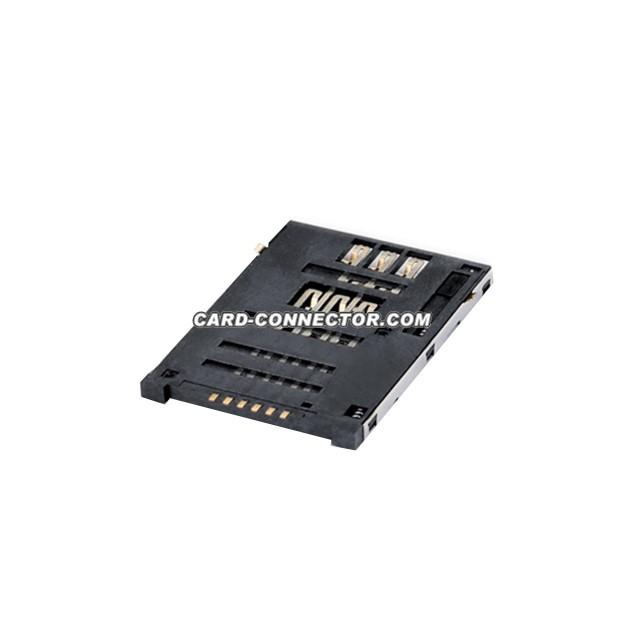

This is a 1.85mm height, push-push, postless 6pin
sim card connector,model:SCCS206185A2.
NOTES:
1.Electrical Characteristitics:
Current Rating;1.5A.
Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000Megohms Minimum at DC 500V
Contact Resistance:100Miliohms Maximum.
2.Mechanical Characteristics:
Mating Cyeles:5000 Insertions.
3.Environmwntal:
Operating Temperture:-40°To+60°
4.Material:
1.Housing:HI-Temp plastic UL 94V-0 Rated.
2.Contact:Copper Alloy.
3.Shell:SUS.
5.Finish :
1u" Gold plated on conatct area,100u"Min Tin plated on
solder tails, Base Nickel :30u"Min
6.Packing:
Number of connectors:750Pcs/REEL
