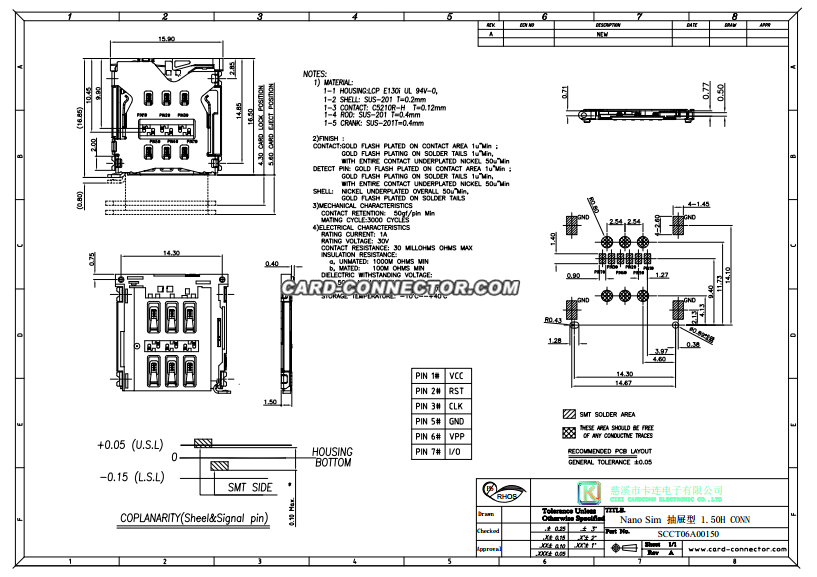

This is a
nano sim card connector with a height of 1.5mm, drawer type, model: SCCT06A00150.
NOTES:
1) MATERIAL:
1-1 HOUSING:LCP E130i UL 94V-0,
1-2 SHELL: SUS-201 T=0.2mm
1-3 CONTACT: C5210R-H T=0.12mm
1-4 ROD: SUS-201 T=0.4mm
1-5 CRANK: SUS-201T=0.4mm
2)FINISH :
CONTACT:GOLD FLASH PLATED ON CONTACT AREA 1u"Min ;
GOLD FLASH PLATING ON SOLDER TAILS 1u"Min,
WITH ENTIRE CONTACT UNDERPLATED NICKEL 50u"Min
DETECT PIN: GOLD FLASH PLATED ON CONTACT AREA 1u"Min ;
GOLD FLASH PLATING ON SOLDER TAILS 1u"Min,
WITH ENTIRE CONTACT UNDERPLATED NICKEL 50u"Min
SHELL: NICKEL UNDERPLATED OVERALL 50u"Min,
GOLD FLASH PLATED ON SOLDER TAILS
3)MECHANICAL CHARACTERISTICS
CONTACT RETENTION: 50gf/pin Min
MATING CYCLE:3000 CYCLES
4)ELECTRICAL CHARACTERISTICS
RATING CURRENT: 1A
RATING VOLTAGE: 30V
CONTACT RESISTANCE: 30 MILLOHMS OHMS MAX
INSULATION RESISTANCE:
a, UNMATED: 1000M OHMS MIN
b, MATED: 100M OHMS MIN
DIELECTRIC WITHSTANDING VOLTAGE:
500V AC/1MINUTE
OPERATING TEPERATURE: -25°C--+70°C
STORAGE TEMPERATURE: -10°C--+40°C
