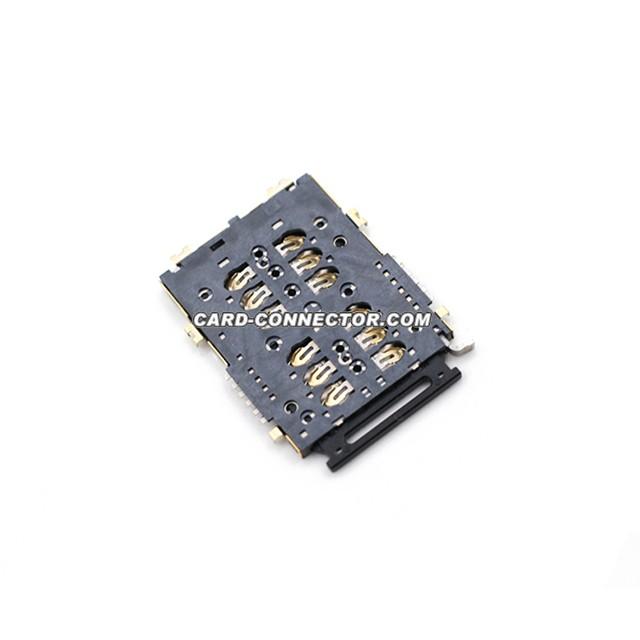

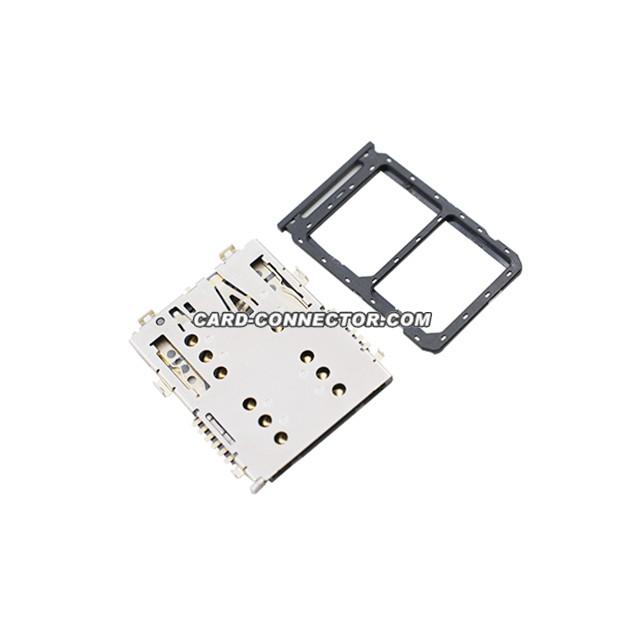

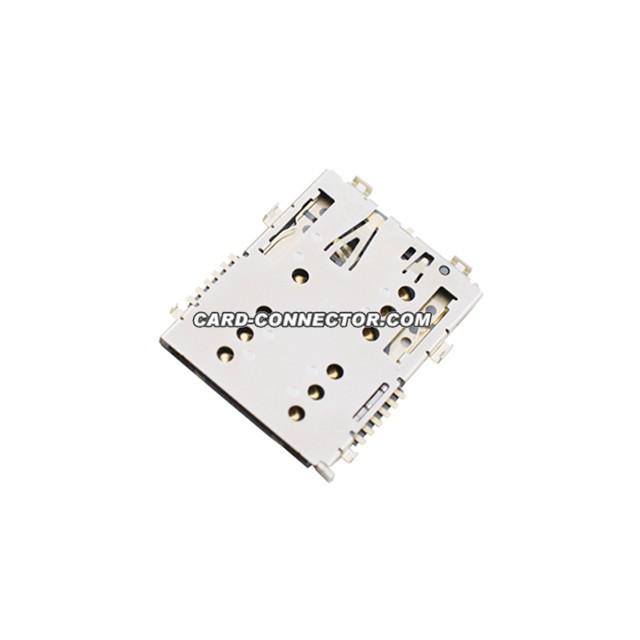

This is a height 1.1MM anti-sink PIN-PUSH dual NANO
sim card connector.

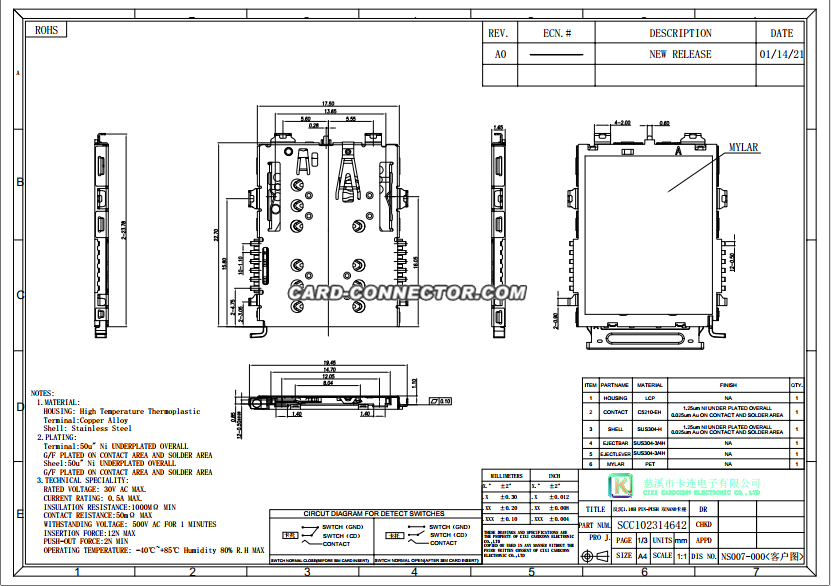

NOTES:
1.MATERIAL:
HOUSING: High Temperature Thermoplastic
Terminal:Copper Alloy
Shell: Stainless Steel
2.PLATING:
Terminal:50u" Ni UNDERPLATED OVERALL
G/F PLATED ON CONTACT AREA AND SOLDER AREA
Sheel:50u" Ni UNDERPLATED OVERALL
G/F PLATED ON CONTACT AREA AND SOLDER AREA
3.TECHNICAL SPECIALITY:
RATED VOLTAGE: 30V AC MAX.
CURRENT RATING: 0.5A MAX.
INSULATION RESISTANCE:1000MΩ MIN
CONTACT REISTANCE:50mΩ MAX
WITHSTANDING VOLTAGE: 500V AC FOR 1 MINUTES
INSERTION FORCE:12N MAX
PUSH-OUT FORCE:2N MIN
OPERATING TEMPERATURE: -40℃~+85℃ Humidity 80% R.H MAX
