sim card connector Z0Y0ZY90Y

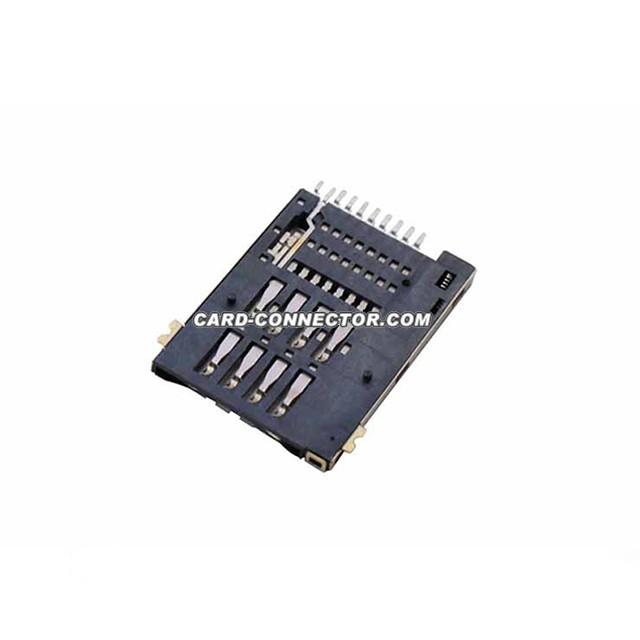

This is a 1.8mm height, 8+2pin, push-push sim card connector.

NOTES:

MATERIAL :

Insulator: High Temperature Thermoplastic, UL 94V-0.

Contact: Copper Alloy

CD PIN: Copper Alloy

Shell: STAINL ESS

Electrical:

Current Rating :0.5mA AC/DC max.

Voltage Rating :10V AC/DC

Ambient Ternperature Range :- 40°C~+85°C
C
Storage Temperature Range :- 40°C~+85°C

Ambient Humidity Range :95% R.H. Max.

Contact Resistonce:100mΩ max.

Insulation Resistance: 1000MΩ min./ 500VDC

Mating Cycles:5,000 Insertions

Temperature: 260°C士5°C
