This is a

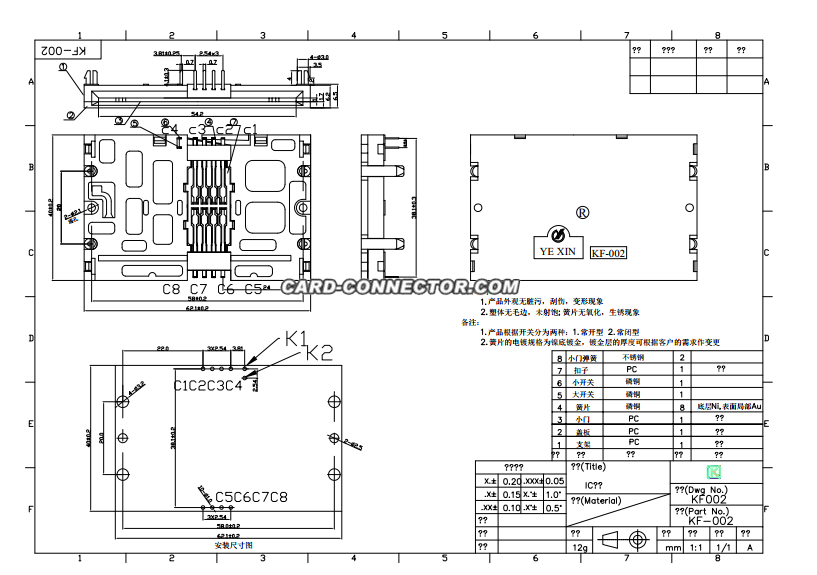

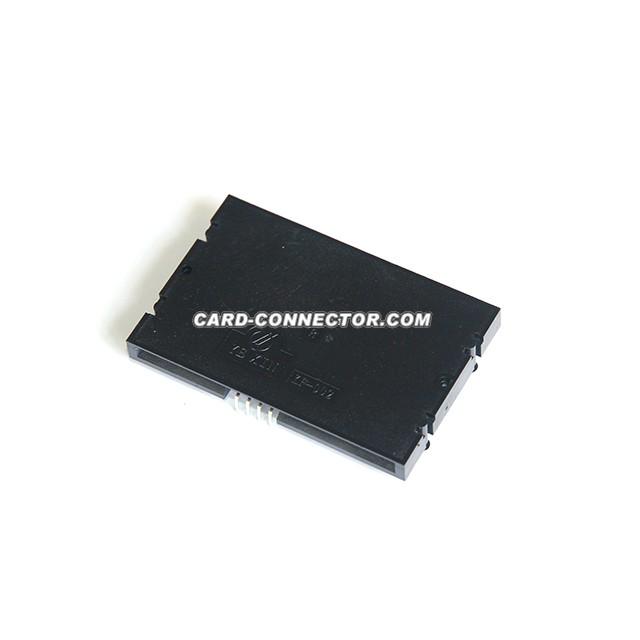

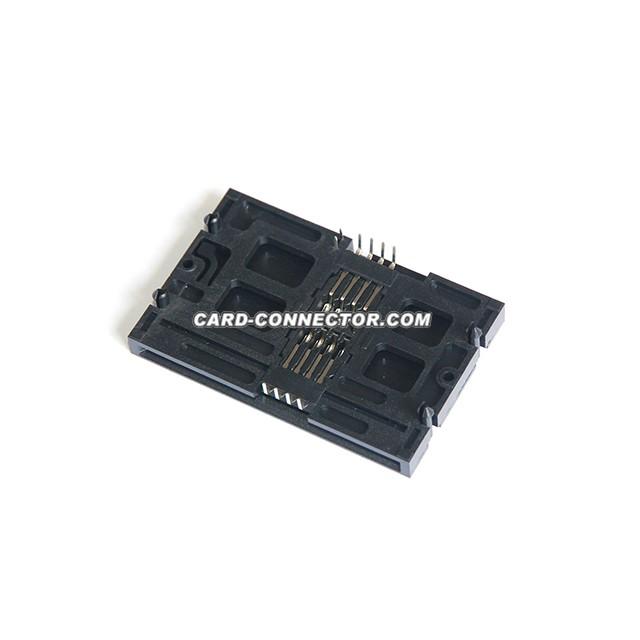

smart card connector with a size of 62*40*6.25mm, 8pin, copper skin switch, model SCC002.
The following specifications are optional: the thickness of the contact gold plating,
there is a column without a column, the switch is normally open and normally closed,
and the foreign object is small. Whether there is a door.
skills requirement:
1. The appearance of the product is free of dirt, scratches, and deformation.
2. The plastic body has no burrs and is not fully shot; the reed has no oxidation
and rust phenomenon
Remark:
1. Products are divided into two types according to the switch: 1. Normally open type 2. Normally closed type
2. The electroplating specification of the reed is gold-plated over nickel, and the thickness of
the gold-plated layer can be changed according to the needs of customers
