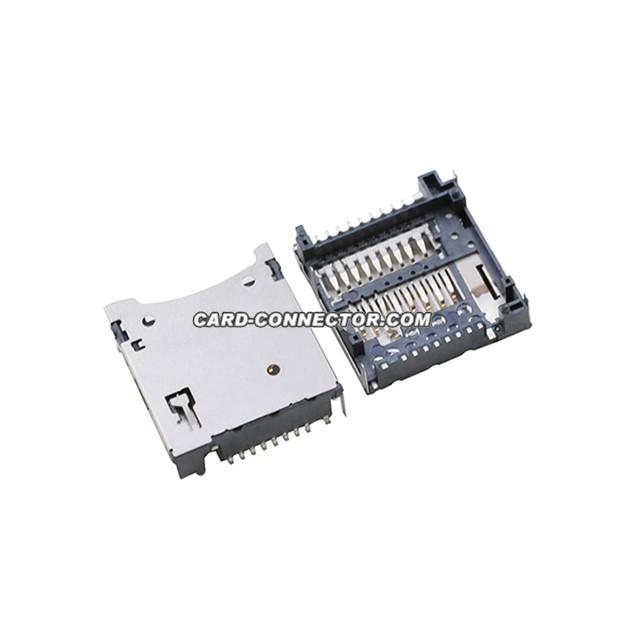

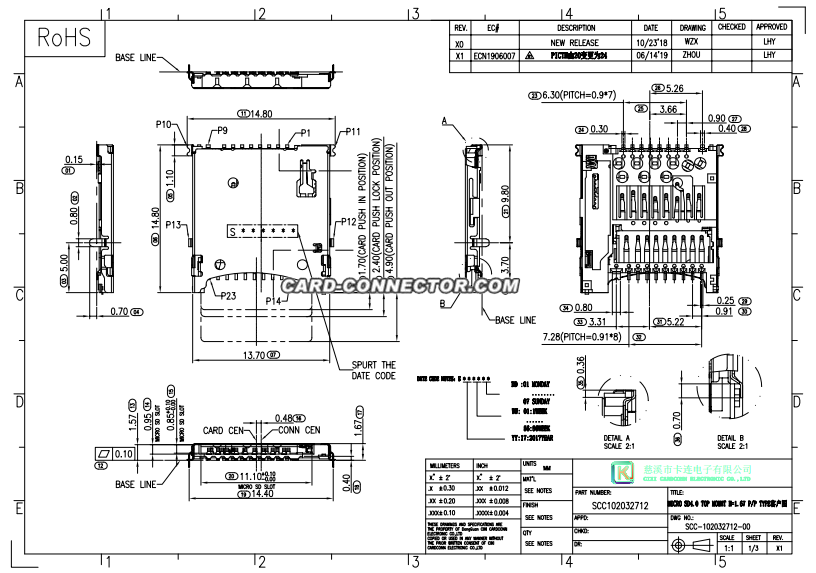

This is a 1.67mm height, push-push micro sd4.0 connector.
NOTES:
(1) MATERIAL:
1-1.PLASTIC: LCP,THERMOPLASTIC UL 94V-0 COLOR: BLACK
1-2.CONTACT: COPPEER ALLOY.
1-3.SELL: STAINLESS STELL.
(2) PATING:
2-1.CONTACT:CONTACT AREA AU 3U".OVER NI 50U";SOLDER TAIL
AREA: MATTED TIN 80U"MIN, OVER NI 50".
2-2.SHELL:SOLDERABILITY OVER PLATING NI 50U" OVER ALL.
(3) CONTACT AND TAIL COPLANARITY TO BE 0.10MM MAX.
