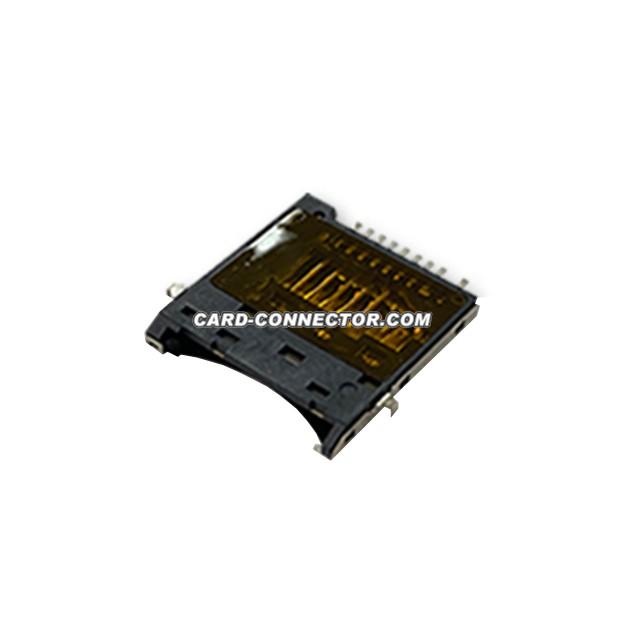

This is a
micro sd card connector with 1.35mm body thickened 0.3, model number: SCC135T123051.
Specification
*Electrical Characteristics:
Contact Current Rating:0.5Amperes.
Dielectric Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000 Megohms
Minimum At DC 500V.
Contact Resistance:100 mΩ Maximum.
*Mechanical Characteristics:
Mating Cyeles:10,000 Cycles.
*Environmental:
Operating Temperature:-25°C~+85°C.
*Materials:
Insulator:HI-Temp plastic UL 94V-0 Rated.
Contact:Copper Alloy.
Shell:Stainless Steel(t=0.15mm).
