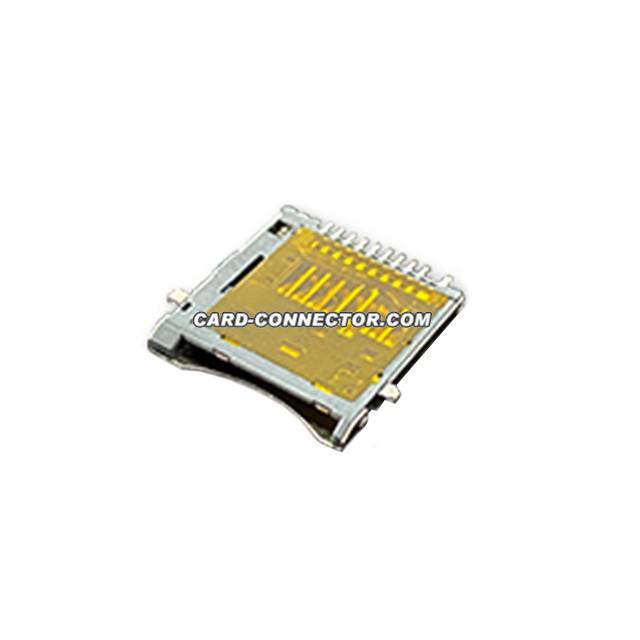

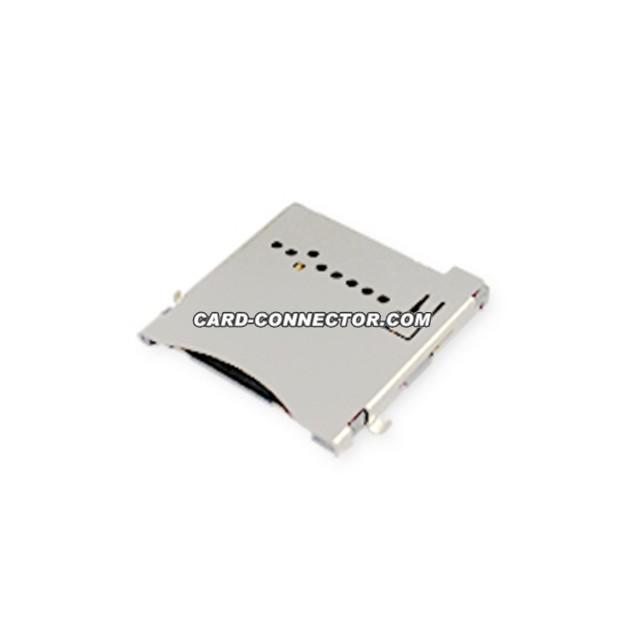

This is a 1.6mm height, push type, Sink
micro sd card connector, model number: SCC160T125001.

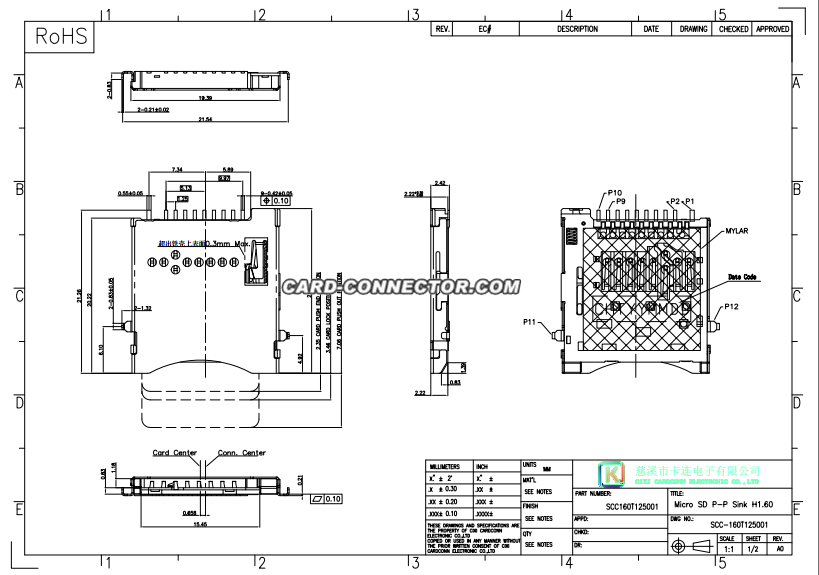

NOTE:
1.MATERIAL:
1-1 PLASTICS: HEAT RESISTANCE POLYMER, UL94V-0,COLOR:BLACK
1-2 CONTACT: COPPER ALLOY
1-3 SHELL; STAINLESS STEEL
2.PLATING:
2-1 CONTACT:
2-1-1: CONTACT AREA: PLATING Au 1u" MIN.
2-1-2: SOLDERTAIL AREA: MATTE TIN 80u" MIN. PLATING OVER Ni
30u" MIN
2-2 SHELL: SOLDERABILITY Ni 30u" MIN PLATING OVER ALL
3.TAIL COPLANARITT TO BE 0.10mm MAX.
4.PART MUST COMPLY TAISOL HF WD-3-1-09I SOPECIFICATION
5.RECOMMENDING A METAL MORE THAN 0.15 THICK.
PLEASE CONFIRM SOLDILITY, IF USE A METAL MASK LESS THAN 0.15mm
THICK.
6.PRODUCT PACKING: PLEASE REFER TO THE PACKING REGULATION
