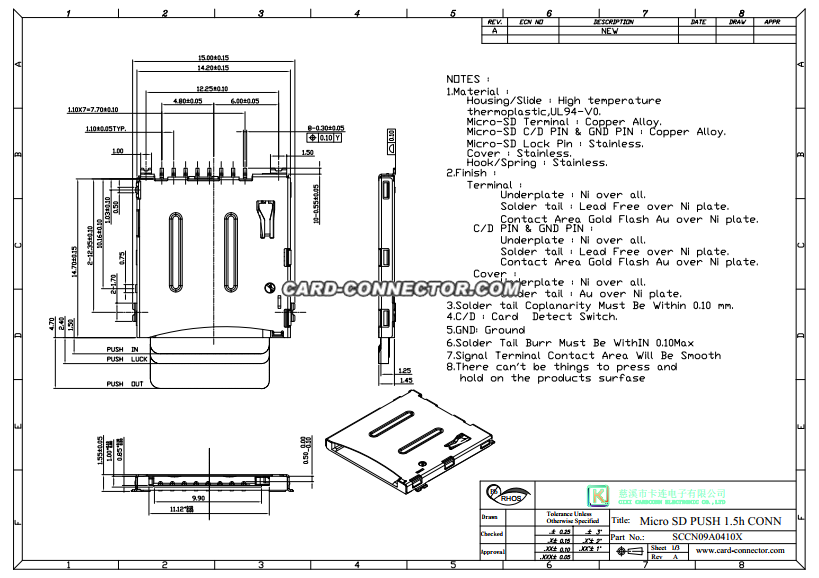

This is a 1.5mm height, push-push
micro sd card connector, model number: SCCN09A0410X.
NOTES :
1.Material :
Housing/Slide : High temperature
thermoplastic,UL94-V0.
Micro-SD Terminal : Copper Alloy.
Micro-SD Lock Pin : Stainless.
Cover : Stainless.
Hook/Spring : Stainless.
2.Finish :
Terminal :
Underplate : Ni over all.
Solder tail : Lead Free over Ni plate.
Contact Area Gold Flash Au over Ni plate.
C/D PIN & GND PIN :
Underplate : Ni over all.
Solder tail : Lead Free over Ni plate.
Contact Area Gold Flash Au over Ni plate.
Cover :
Underplate : Ni over all.
Solder tail : Au over Ni plate.
3.Solder tail Coplanarity Must Be Within 0.10 mm.
4.C/D : Card Detect Switch.
5.GND: Ground
6.Solder Tail Burr Must Be WithIN 0.10Max
7.Signal Terminal Contact Area Will Be Smooth
8.There can't be things to press and
hold on the products surfase
