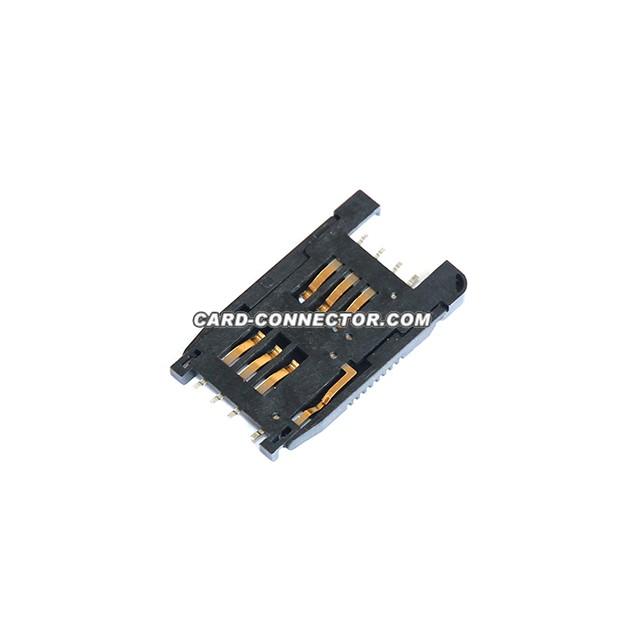

mini sim card connector SCC028

This is a 6P sim card connector with switch with both bracket and cover made of plastic.

Specification ：

Material  ：
Housing  ：PA9T
Contact Terminal ：Phosphor Bronze
Blade switch：normally open

Plating ：
Contact Terminal Plating
Contact Area:5μ" Gold
Soldering Area:100μ" Tin
Under-plating:50μ" Nickel above

Electrical ：
Voltage Rating：50 V max
Current Rating：1A max
Operating Temperature：-40°C to +85°C
Contact Resistance：50 mΩ typical,100mΩ max
Insulating Resistance：1000 MΩ min.(Apply500V DC)
Dielectric Withstanding Voltage：500 VAC for 1 minute

Mechanical ：
Durability ：min 5,000 cycles
