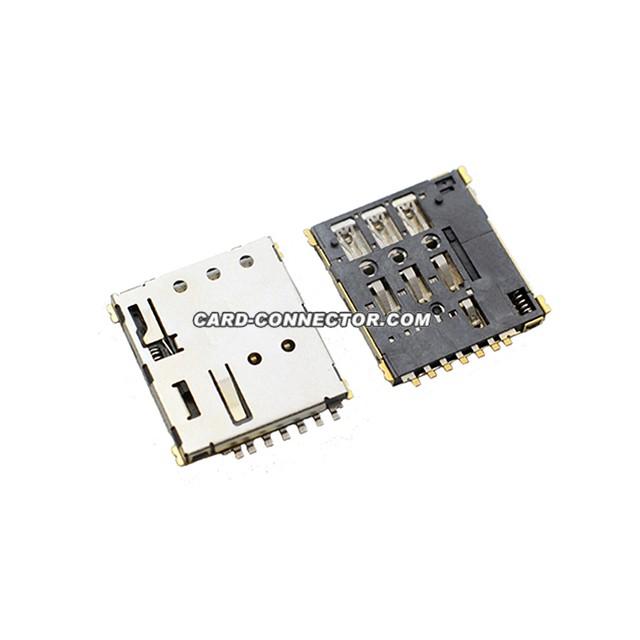

nano sim card connector Z0Y3Z444Y

  • Product Item : SCCZ0Y3Z444Y
  • Category: nano sim card connector
  • Housing:LCP
  • Contact Terminal:Phosphor Bronze
  • Metallic Shell:Stainless Steel
  • Product description:This is a nano sim card connector with a height of 1.37mm, push-push type, with positioning posts, gold-plated 1μ'', 7PIN with CD PIN, and can replace TE's 2336582-1.
  • INQUIRY

This is a nano sim card connector with a height of 1.37mm, push-push type, with positioning posts, gold-plated 1μ'',

7PIN with CD PIN, and can replace TE's 2336582-1.

NOTES:
1.MATERIAL:
HOUSING:HI-TEMP. PLASIC UL 94V-0
CONTACT:COPPER ALLOY
SHELL:STANLESS STEEL
2.PLATING :
TERMINAL:
CONTACT AREA: Au GOLD FLASH.
SOLDER AREA: AU GOLD FLASH.
UNDER PLATE: NICKEL.
SHELL: NICKEL PLATED OVER ALL.
SOLDER AREA: GOLD FLASH.
3.SPECIALITY:
3.1 Rated current:1.0A
3.2 Rated voltage:30V
3.3 Contact Resistance:50mΩ MAX
3.4 Insulation Resistance:1000MΩ MIN 500V DC
3.5 Dielectric withstanding voltage: 500V AC.
3.6 Solder ability:260+0/-5℃,30±10s.
3.7 Durability:5000 Cycles Min.
3.8 Operating condition:Temperature-40℃~+85℃;
Humidity 80% R.H MAX
