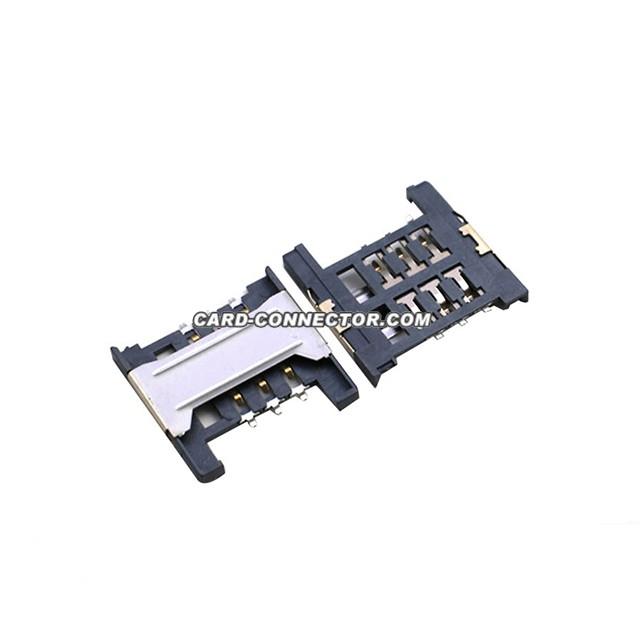

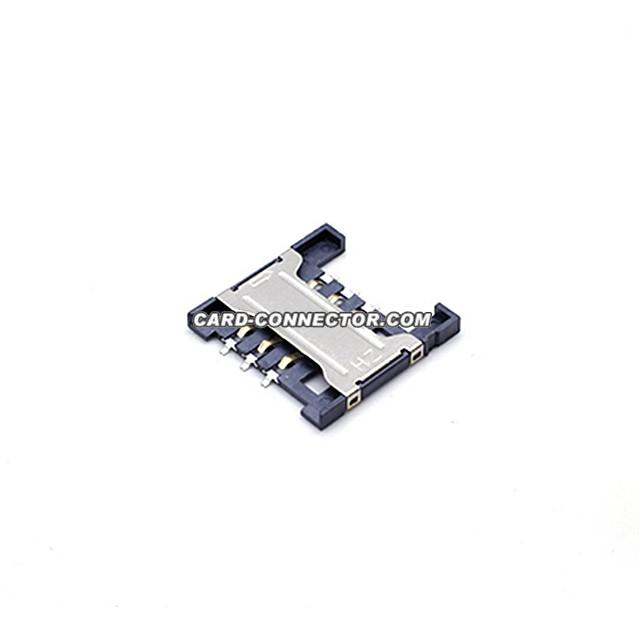

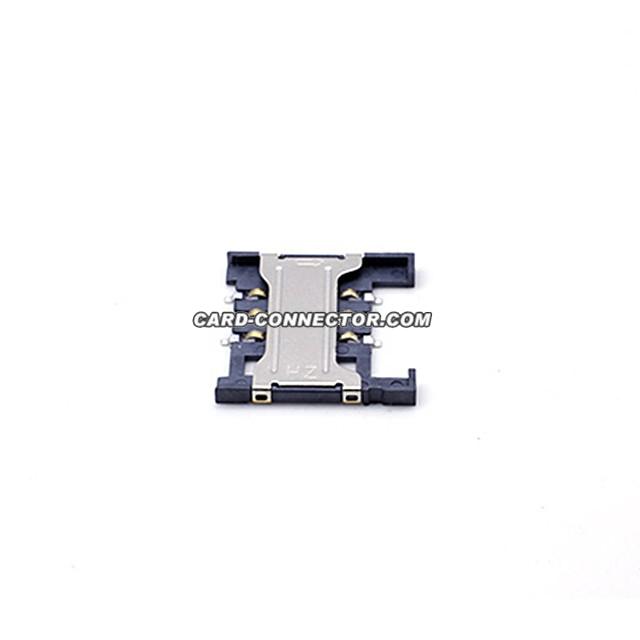

This is a
sim card connector with a height of 1.8mm and a bridge with a stopper, model number: SCC40Y0ZZ88YA. Can replace
MOLEX475480001.

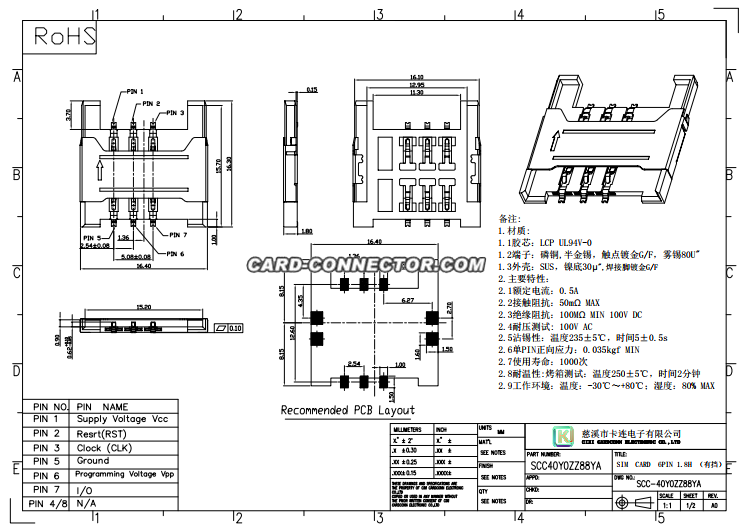

Remarks:
1. Material:
1.1 Rubber core: LCP UL94V-0
1.2 Terminal: C2680, half gold tin, contact gold 1U", mist tin 80U"
1.3 Shell: SUS201, nickel base 50U", welding feet gilded 1U"
2. Main features:
2.1 Rated current: 0.5A
2.2 Contact impedance: 50mΩ MAX
2.3 Insulation impedance: 100Ω MIN 100V DC
2.4 Pressure test: 100V AC
2.5 Tinness: temperature 235±5℃, time 5±0.5s
2.6 Positive stress of single PIN: 0.035kgf MIN
2.7 Service life: 7000 times
2.8 Temperature resistance: Oven test: temperature 250±5℃, 2 minutes
2.9 Working environment: Temperature: -30℃ ~ +80℃; Humidity: 80% MAX
