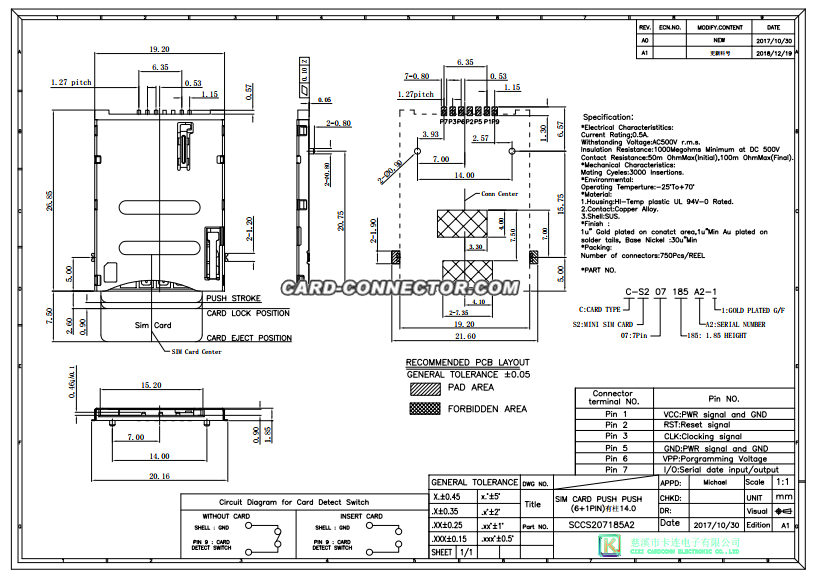

This is a 6+1PIN
sim card connector with a height of 1.85mm, a push-push type,
and a distance of 14.0mm between the two positioning posts. Model: SCCS207185A2.
Specification:
*Electrical Characteristitics:
Current Rating;0.5A.
Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000Megohms Minimum at DC 500V
Contact Resistance:50m OhmMax(Initial),100m OhmMax(Final).
*Mechanical Characteristics:
Mating Cyeles:3000 Insertions.
*Environmwntal:
Operating Temperture:-25°To+70°
*Material:
1.Housing:HI-Temp plastic UL 94V-0 Rated.
2.Contact:Copper Alloy.
3.Shell:SUS.
*Finish :
1u" Gold plated on conatct area,1u"Min Au plated on
solder tails, Base Nickel :30u"Min
*Packing:
Number of connectors:750Pcs/REEL
