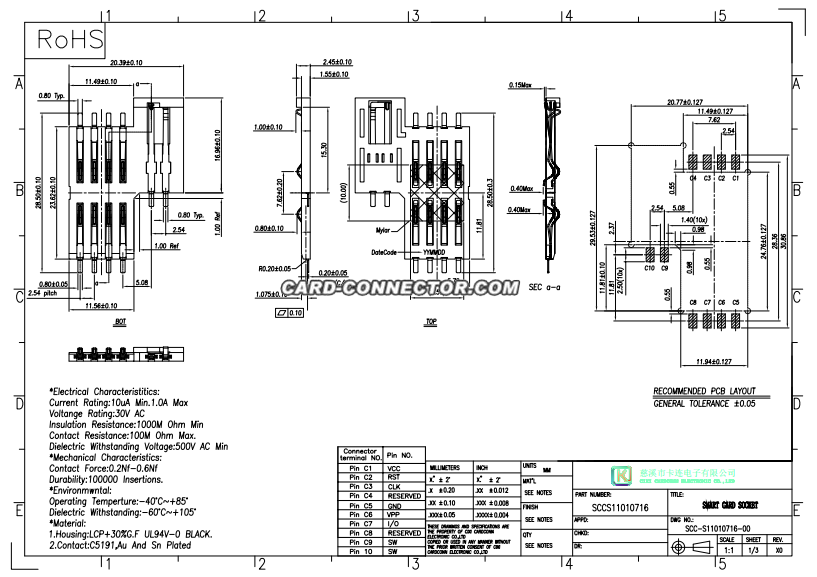

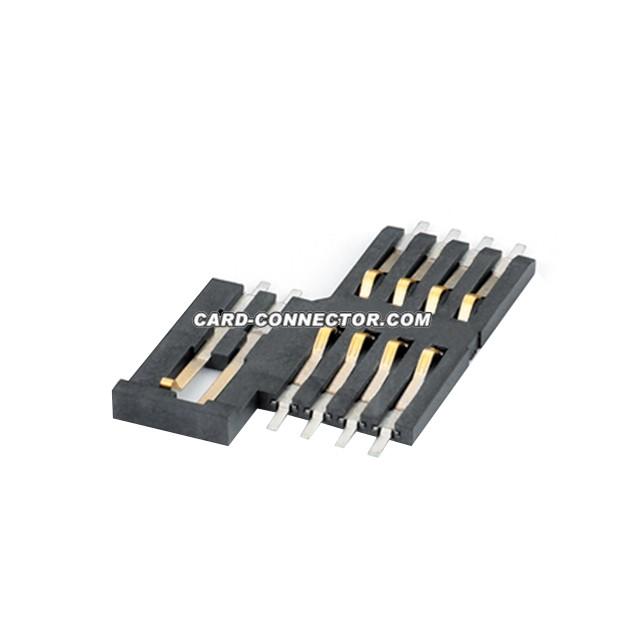

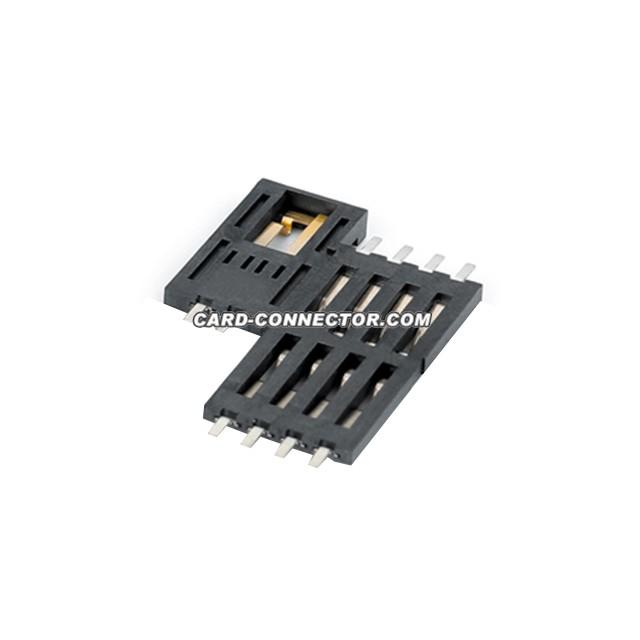

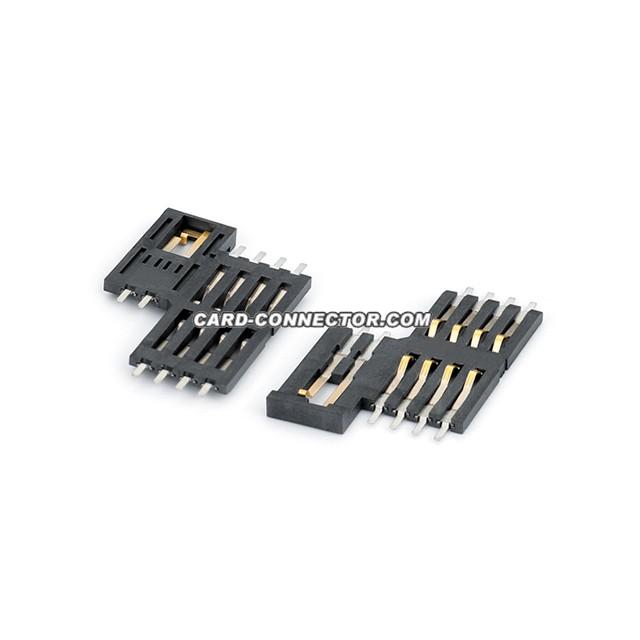

This is a simple
smart card connector with a height of 1.075mm and a switch,
model number: SCCS11010716.
*Electrical Characteristitics:
Current Rating:10uA Min.1.0A Max
Voltange Rating:30V AC
Insulation Resistance:1000M Ohm Min
Contact Resistance:100M Ohm Max.
Dielectric Withstanding Voltage:500V AC Min
*Mechanical Characteristics:
Contact Force:0.2Nf-0.6Nf
Durability:100000 Insertions.
*Environmwntal:
Operating Temperture:-40°C~+85°
Dielectric Withstanding:-60°C~+105°
*Material:
1.Housing:LCP+30%G.F UL94V-0 BLACK.
2.Contact:C5191,Au And Sn Plated
