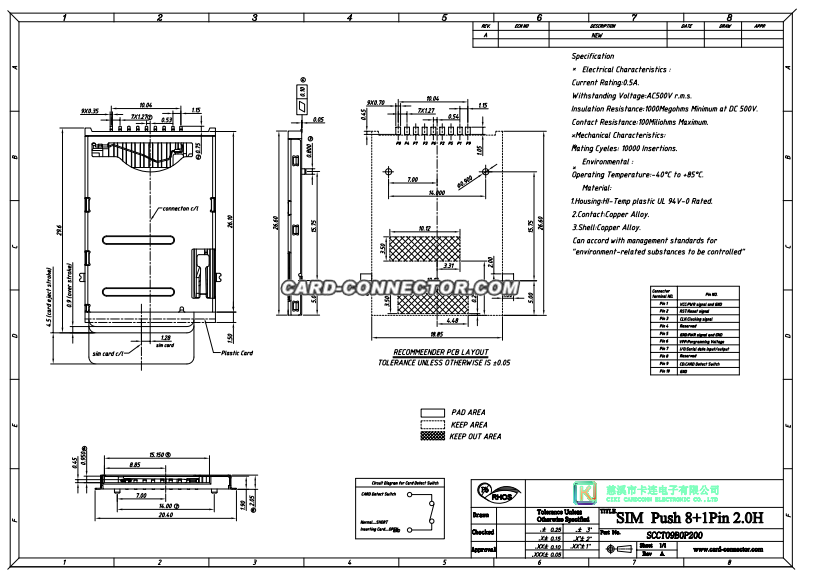

This is a 2.0mm height, 8+1Pin, push-push
micro sd card connector, model: SCCT09B0P200.
Specification
Electrical Characteristics :
Current Rating:0.5A.
Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000Megohms Minimum at DC 500V.
Contact Resistance:100Miliohms Maximum.
*Mechanical Characteristics:
Mating Cyeles: 10000 Insertions.
Environmental :
Operating Temperature:-40°C to +85°C.
Material:
1.Housing:HI-Temp plastic UL 94V-0 Rated.
2.Contact:Copper Alloy.
3.Shell:Copper Alloy.
