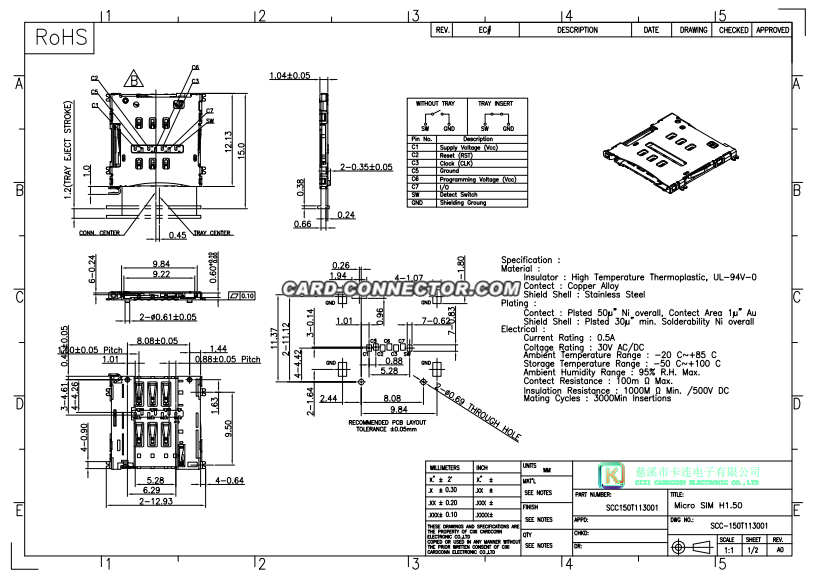

This is a 1.5mm height
micro sim card connector with switch, model number: SCC150T113001.
Specification :
Material :
Insulator : High Temperature Thermoplastic, UL-94V-0
Contect : Copper Alloy
Shield Shell : Stainless Steel
Plating :
Contect : Plsted 50µ" Ni overall, Contect Area 1µ" Au
Shield Shell : Plsted 30µ" min. Solderability Ni overall
Electrical :
Current Rating : 0.5A
Coltage Rating : 30V AC/DC
Ambient Temperature Range : -20°C~+85°C
Storage Temperature Range : -50°C~+100°C
Ambient Humidity Range : 95% R.H. Max.
Contect Resistance : 100m Ω Max.
Insulation Resistance : 1000M Ω Min. /500V DC
Mating Cycles : 3000Min Insertions
