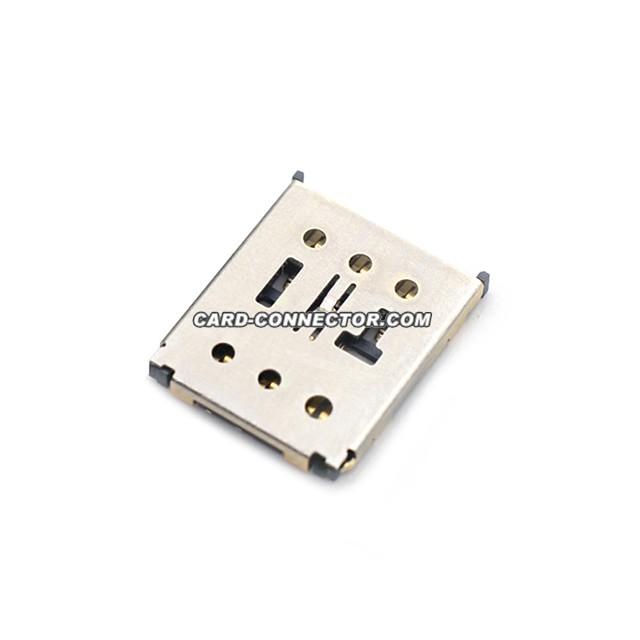

This is a nano
sim card connector with a card tray with a height of 1.42mm.
NOTES:
1. MATERIAL:
1.1 Housing:High Temperature Thermoplastic
1.2 Terminal:Copper Alloy.
1.3 Shell:Stainless Steel.
2.PLATING:
2.1 Contact: Contact Area:Au G/F, Solder area&Contact area
Under plate Ni 50u"Min all over
2.2 SHELL: Solder Area:Au G/F,Under plate Ni 50u"Min all over
3. SPECIALITY:
3.1 Rated current:1.0A
3.2 Rated voltage:30V
3.3 Contact Resistance:50mΩ MAX
3.4 Insulation Resistance:1000MΩ MIN 500V DC
3.5 Dielectric withstanding voltage: 500V AC.
3.6 Operating condition:Temperature-40℃～+85℃；
Humidity 80% R.H MAX
