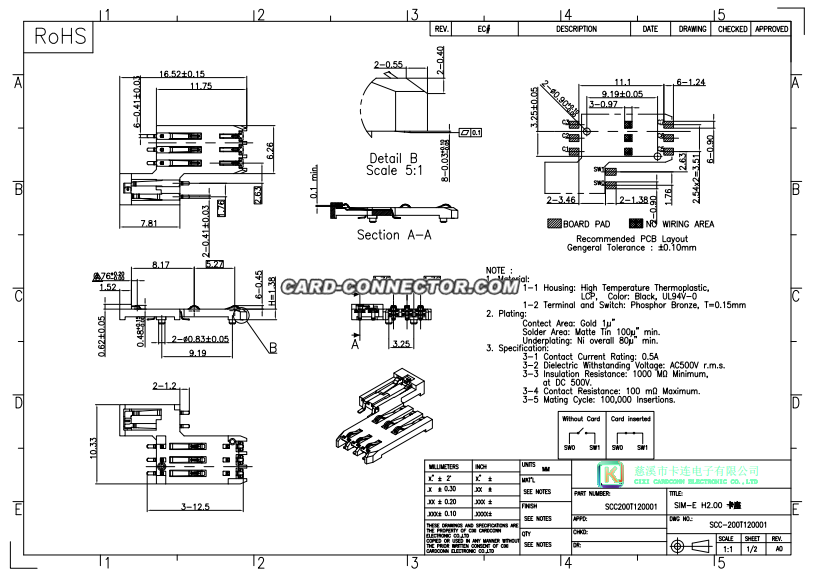

This is a simple
smart card connector with a height of 2.0mm, 6+2pin, model: SCC200T120001.
NOTE :
1. Material:
1-1 Housing: High Temperature Thermoplastic,
LCP, Color: Black, UL94V-0
1-2 Terminal and Switch: Phosphor Bronze, T=0.15mm
2. Plating:
Contect Area: Gold 1µ"
Solder Area: Matte Tin 100µ" min.
Underplating: Ni overall 80µ" min.
3. Specification:
3-1 Contact Current Rating: 0.5A
3-2 Dielectric Withstanding Voltage: AC500V r.m.s.
3-3 Insulation Resistance: 1000 MΩ Minimum,
at DC 500V.
3-4 Contact Resistance: 100 mΩ Maximum.
3-5 Mating Cycle: 100,000 Insertions.
