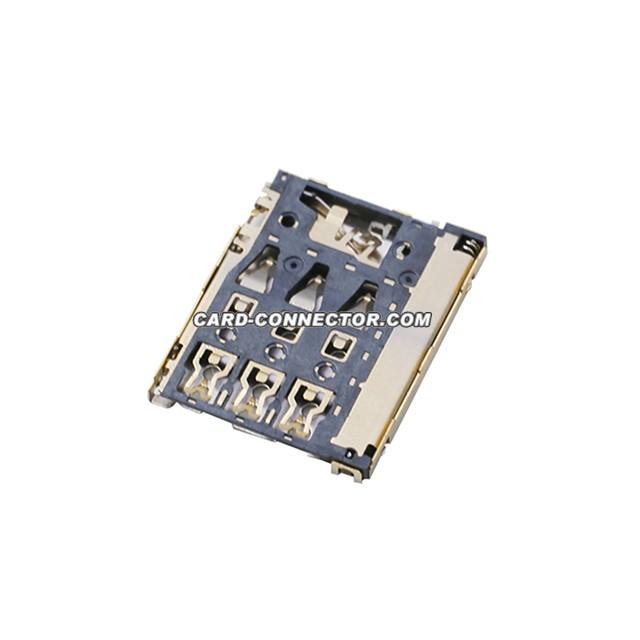

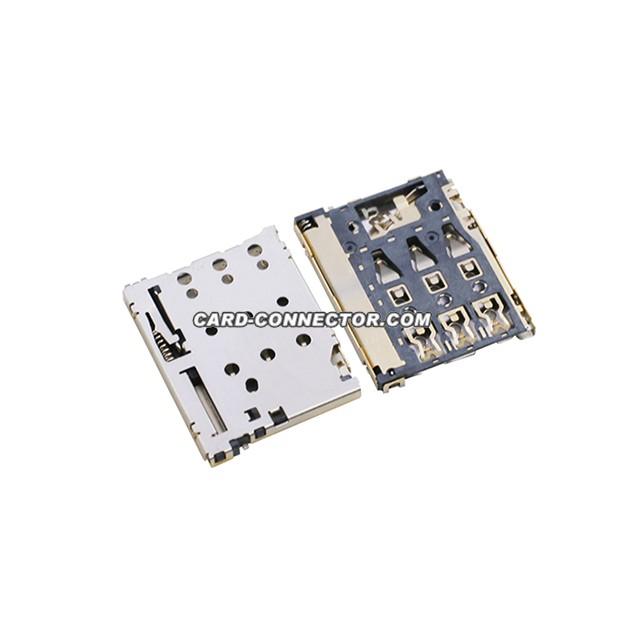

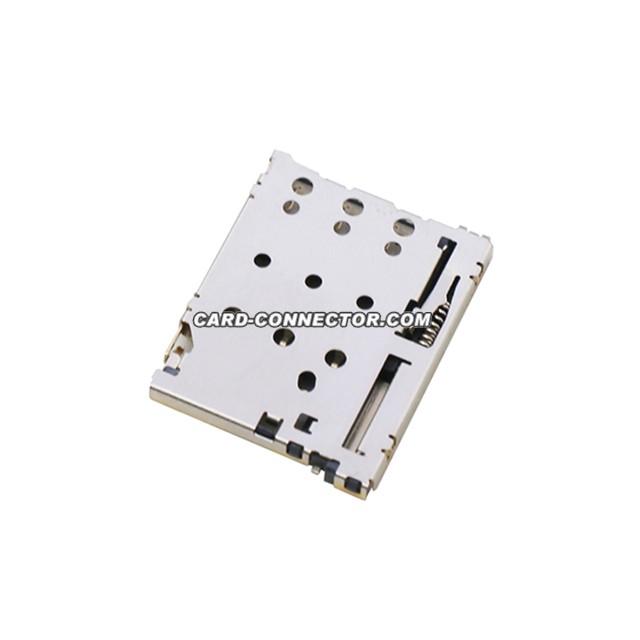

This is a 6pin nano
sim card connector with a height of 1.25mm.
It can replace JAE's SF72S006VBDR2500.
NOTES:
1. MATERIAL:
1.1 Housing:High Temperature Thermoplastic
UL94V-0; Color Black.
1.2 Terminal:Copper Alloy.
1.3 Shell:Stainless Steel.
2. SPECIALITY:
2.1 Rated current:0.5A
2.2 Rated voltage:30V
2.3 Contact Resistance:100mΩ MAX
2.4 Insulation Resistance:100MΩ MIN 500V DC
2.5 Dielectric withstanding voltage: 100V AC.
2.6 Solder ability:255±5℃，10±0.5s.
2.7 Durability:5000 Cycles Min.
2.8 Insertion Force:10N MAX
2.9 Withdrawal Force:0.5N MIN
3.0 Operating condition:Temperature-40℃～+85℃；
Humidity 80% R.H MAX
3. PLEASE CONTACT JBL SALES REPRESENTATIVE TO VERIFY PRODUCT DETAILS & AVAILABILITY
