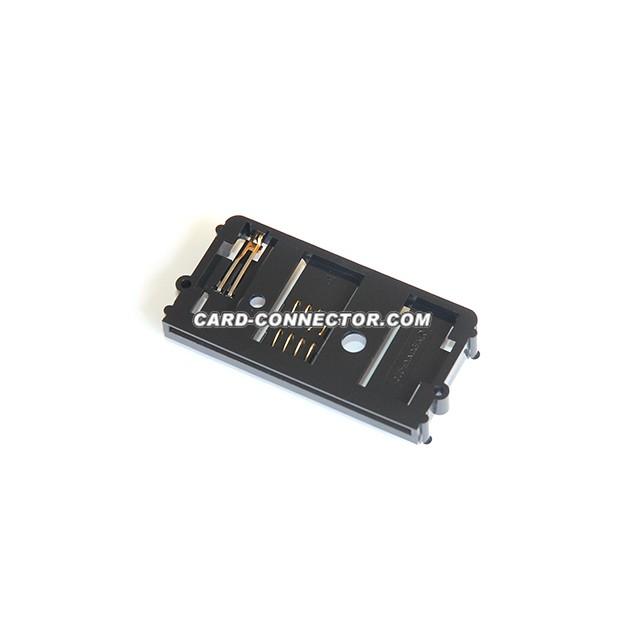

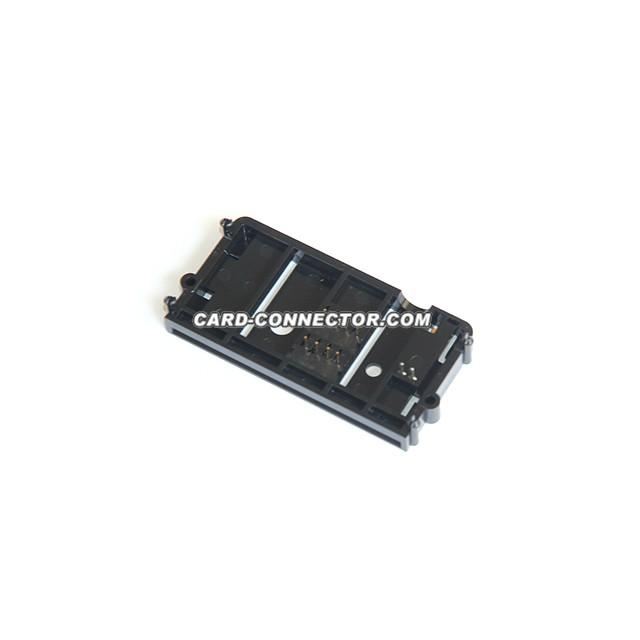

This is an all-in-one
smart card connector with switch, model: SCC010A.
1、8pin+2pin
2、DIP type
3、Blade switch：normally open

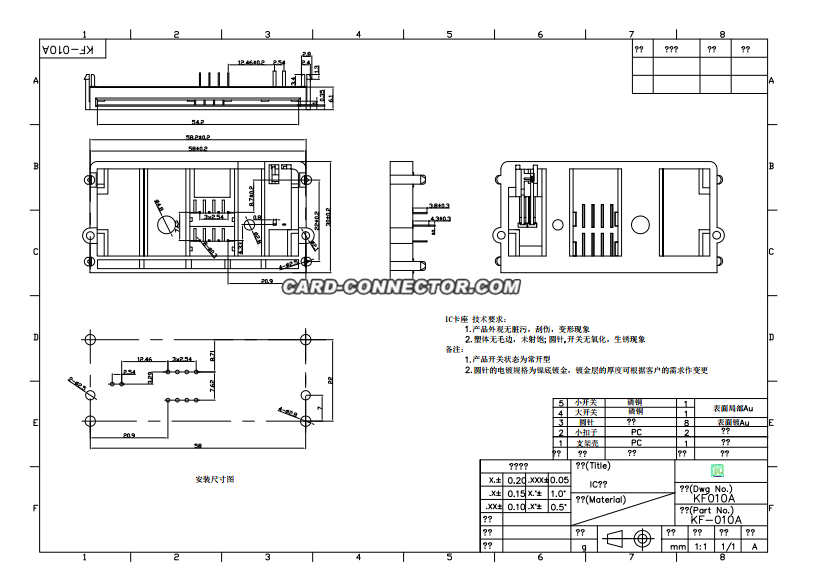

4、DIM:60.7*30.1*6.2mm
IC card holder technical requirements:
1. The appearance of the product is free from dirt, scratches and deformation
2. The plastic body has no burrs and is not fully shot; the round needle and the switch
are free from oxidation and rust
Remark:
1. The switch state of the product is normally open
2. The electroplating specification of the round needle is gold-plated on nickel base,
and the thickness of the gold-plated layer can be changed according to the needs of customers.
