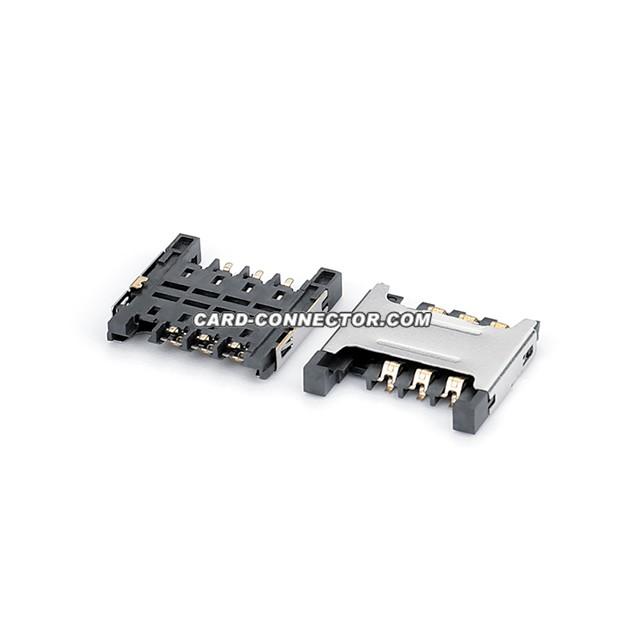

Product description：This is a 6pin micro sim card connector with a bridge and a gear, the cover is grounded,
and the height is 2.4mm. Model: SCCS306240A1.
This is a 6pin micro sim card connector with a bridge and a gear, the cover is grounded,
and the height is 2.4mm. Model: SCCS306240A1.

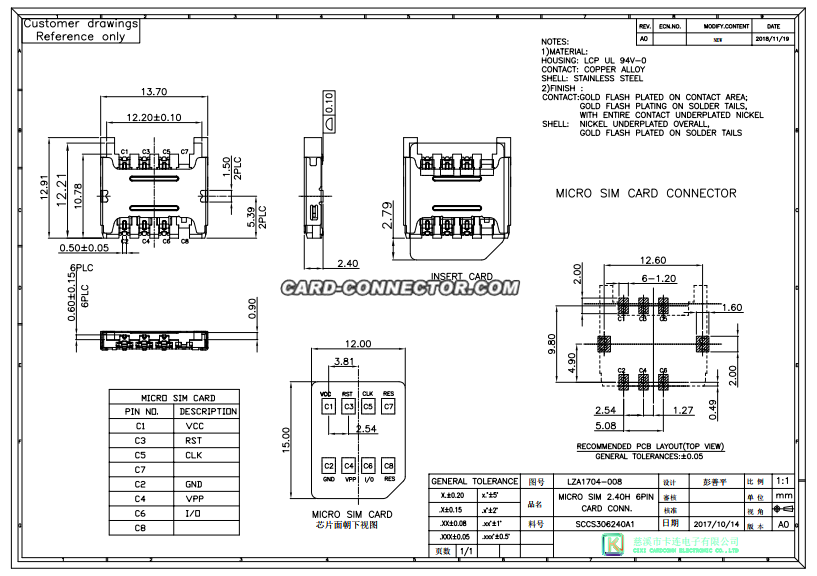

NOTES:
1)MATERIAL:
HOUSING: LCP UL 94V-0
CONTACT: COPPER ALLOY
SHELL: STAINLESS STEEL
2)FINISH :
CONTACT:GOLD FLASH PLATED ON CONTACT AREA;
GOLD FLASH PLATING ON SOLDER TAILS,
WITH ENTIRE CONTACT UNDERPLATED NICKEL
SHELL: NICKEL UNDERPLATED OVERALL,
