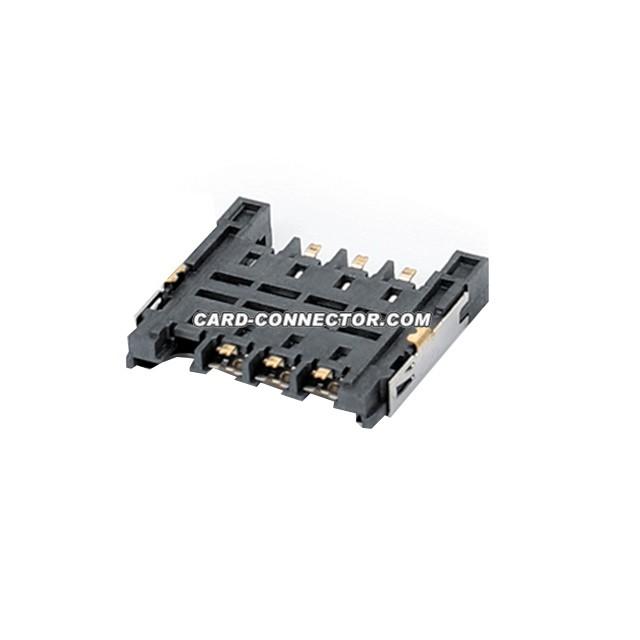

This is a 6PIN micro
sim card connector with a height of 2.65mm and a bridge, model: SCCS306265A1.
NOTES:
1)MATERIAL:
HOUSING: LCP UL 94V-0
CONTACT: C5210R-H
SHELL:SUS201-H
2)FINISH:
CONTACT:GOLD FLASH PLATED ON CONTACT AREA;
GOLD FLASH PLATING ON SOLDER TAILS,
WITH ENTIRE CONTACT UNDERPLATED NICKEL
SHELL: NICKEL UNDERPLATED OVERALL
GOLD FLASH PLATED ON SOLDER TAILS
3)ELECTRICAL CHARACTERISTICS
RATING CURRENT : 0.5A MAX.
CONTACT RESISTANCE :50 mΩ MAX
DIELECTRIC WITHSTANDING : 500V AC MIN.
INSULATION RESISTANCE: 1000 MΩ MIN.
4)MECHANICAL CHARACTERISTICS
MATING CYCLE :3000 CYCLES
