This is a

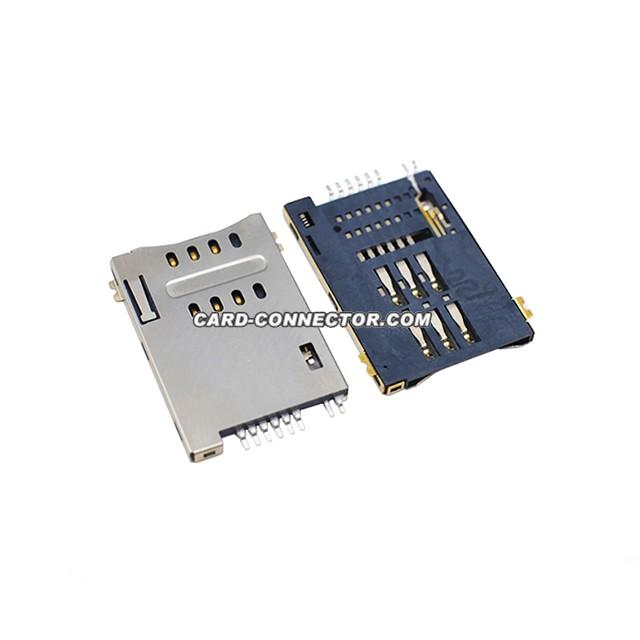

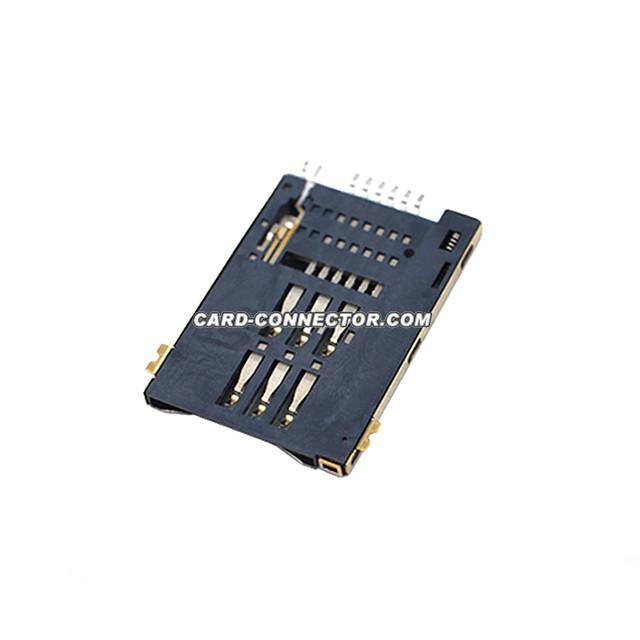

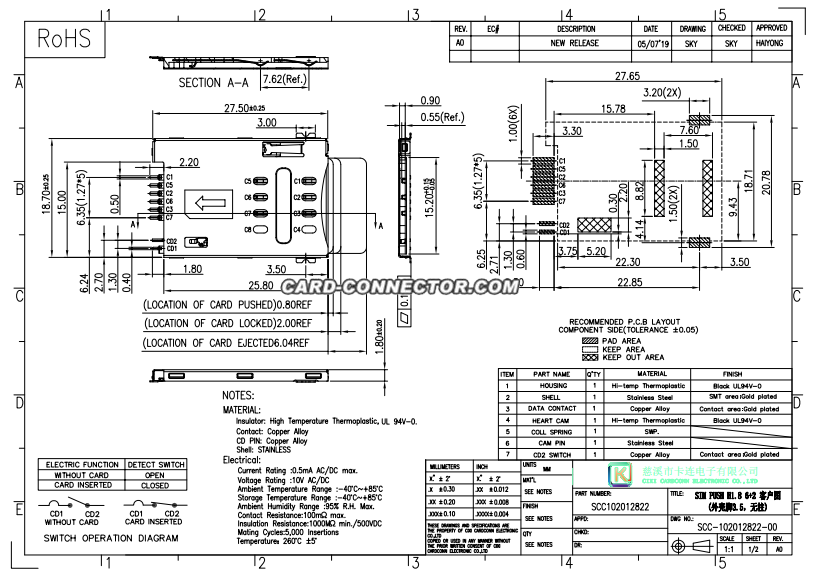

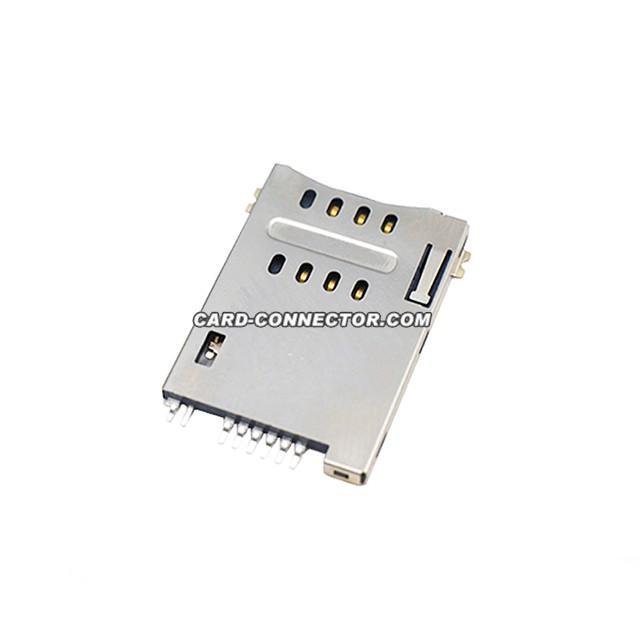

sim card connector with a height of 1.8mm, a shell of 3.5mm, and a push-push type 6+2Pin without positioning posts.
NOTES:
MATERIAL:
Insulator: High Temperature Thermoplastic,UL 94V-0.
Contact: Copper Alloy
CD PIN: Copper Alloy
Shell: STAINLESS
Electrical:
Current Rating :0.5mA AC/DC max.
Voltage Rating :10V AC/DC
Ambient Temperature Range :-40°C~+85°C
Storage Temperature Range :-40°C~+85°C
Ambient Humidity Range :95% R.H. Max.
Contact Resistance:100m max.
Insulation Resistance:1000M min./500VDC
Mating Cycles:5,000 Insertions
Temperature：260°C ±5°C
