mini sim card connector SCC016

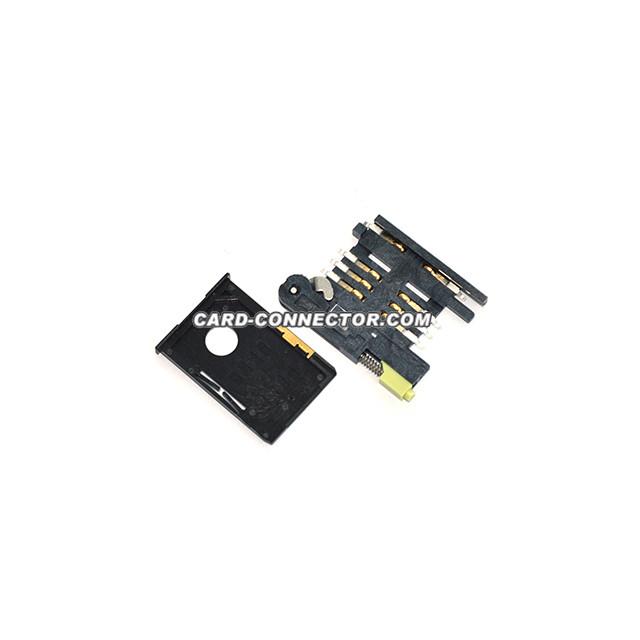

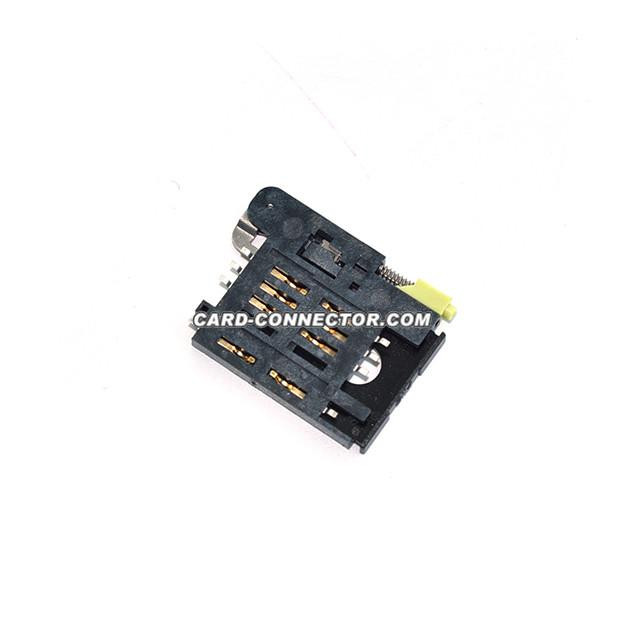

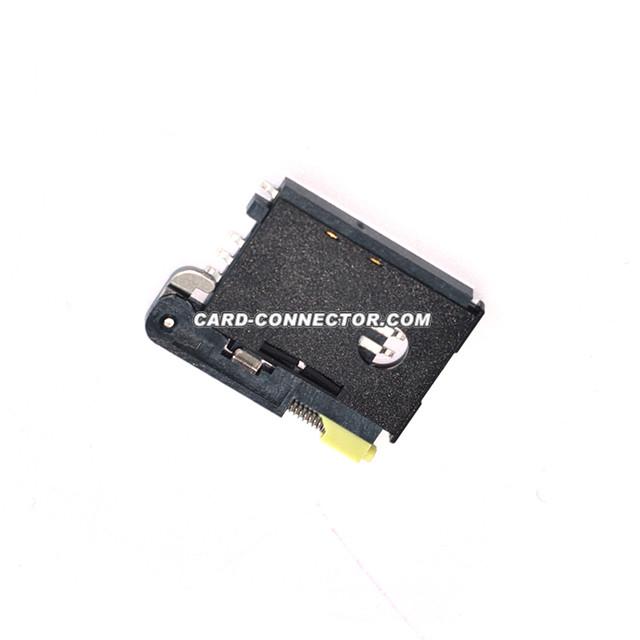

This is a drawer-style sim card connector. It consists of a bracket and a cover plate. There are two types of cover, sim and micro sim, so you can insert sim card and micro sim card. There are 6+2p and 8+2p brackets to choose from. Available with or without columns. There are normal buttons and extended buttons to choose from, and of course you can also choose the color of the buttons. This is a sim card connector that can perfectly replace molex 912283001（91228-3001）.The plastic bracket is made of LCP material, the cover is made of PBT material, the button is made of LCP material, the contact terminal is made of phosphor bronze, the whole contact terminal is nickel-plated, tin-plated, and the part of the tin is gold-plated, Contact Area: 20μ".Due to the thickness of the sim card used by end customers may be non-standard. For some customers who use ultra-thin sim cards, we have also produced a sim card connector tray corresponding to the mold opening. The depth of the slot for inserting the card has been changed from the original 0.88mm to 0.75mm. Customers using thin sim cards can choose a card tray with a slot depth of 0.75mm.
