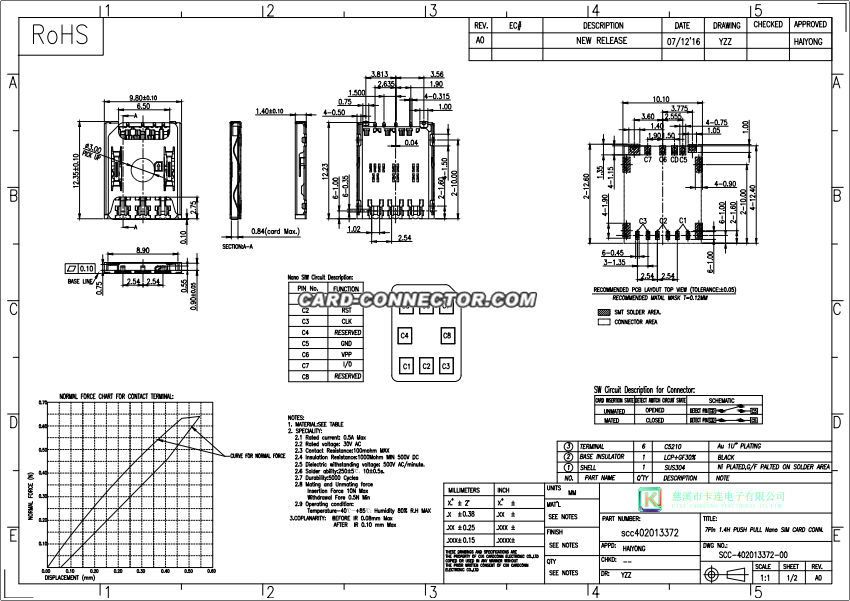

nano sim card connector 40Y0Z337Y

This a 7Pin 1.4H PUSH PULL Nano sim card connector.

1. MATERIAL:SEE TABLE
2. SPECIALITY:
2.1 Rated current: 0.5A Max
2.2 Rated voltage: 30V AC
2.3 Contact Resistance:100mohm MAX
2.4 Insulation Resistance:1000Mohm MIN 500V DC
2.5 Dielectric withstanding voltage: 500V AC/minute.
2.6 Solder ability:250±5℃，10±0.5s.
2.7 Durability:5000 Cycles
2.8 Mating and Unmating force
Insertion Force 10N Max
Withdrawal Fore 0.5N Min
2.9 Operating condition:
Temperature-40℃～+85℃；Humidity 80% R.H MAX
3.COPLANARITY:  BEFORE IR 0.08mm Max
AFTER  IR 0.10 mm Max
