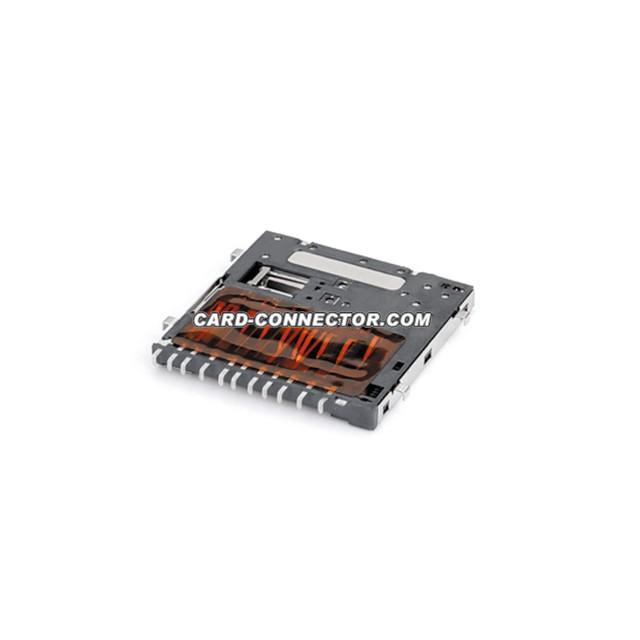

This is a P/P board sinker 2.75 mm DIP (anti-MMC)
sd card connector, model: SCCD11127517.
Specification
Can accord with management standards for
environment-related substances to be controlle
*Electrical Characteristics:
Contact Current Rating:0.5 Amperes.
Dielectric Withstanding Voltage:AC500V r.m.s.
Insulation Resistance:1000 MΩ Minimum.
Contact Resistance:100 mΩ Maximum.
*Environmental:
Operating Temperature:-20°C~+85°C.
*Environmental:
Mating Cyeles:10,000 Insertions.
*Mechanical Characteristics:
Card Push Insertion/Out Force:1.00kgf Maximum
Contact Separation Force:0.20kgf Minimum.
*Material:
Insulator:LCP UL 94V-O Rated.
Contact:Copper Alloy.T=0.15
Shell:Stainless Steel.T=0.20
*PLATING:
contact
contact area:Au plating over Ni(Ni 30 u”) soldertail area: matte tin plating over Ni(Ni 30 u”)
shell:
solderable Ni plating over all
soldertail area: matte tin plating over Ni(Ni 50 u”)
