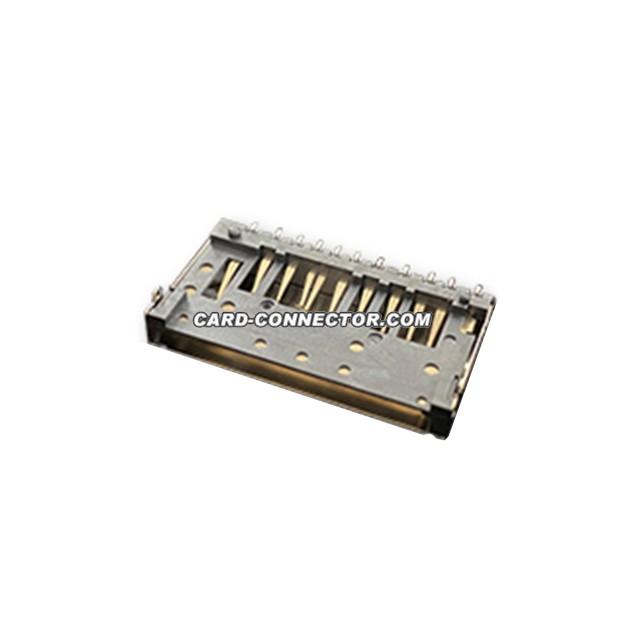

This is a 2.8mm high, short, smt type
sd card connector with 1.0mm pad height. Model: SCCSDET125031.
NOTES :
1.Material:
1.1 Insulator:High Temperature Thermoplastic,
(LCP,S475),UL Black 94V-0.
1.2 Contact: Phosphor Bronze(C5191-EH,T=0.15±0.05mm)
1.3 Shell: SUS304-3/4H,T=0.15±0.05mm
2 Plating:
2.1 Contact: Plated 50u''min Ni Overall
Plated 1u"min Au Selective Contact Area
Plated 80u"min Sn over Ni on solder area
2.2 Shell: Plated 50u''min Ni Overall
3.Property:
3.1 Current Rating :0.5A AC/DC
3.2 Voltage Rating :250VRMS
3.3 Dielectric Witshtanding Voltage: AC 500V r.m.s.
3.4 Insulation Resistance:1000MΩ minimum.
3.5 Contact Resistance:100mΩ maximum
3.6 Operating Temperature:-25°C~90°C
4. Part Must Comply Taisol HF WD-3-I-091 Specification.
5. Recommending A Metal More Than 0.15mm Thick. Please
Confirm Solderadility, IF Use A Metal Mask Less Than 0.15mm Thick.
