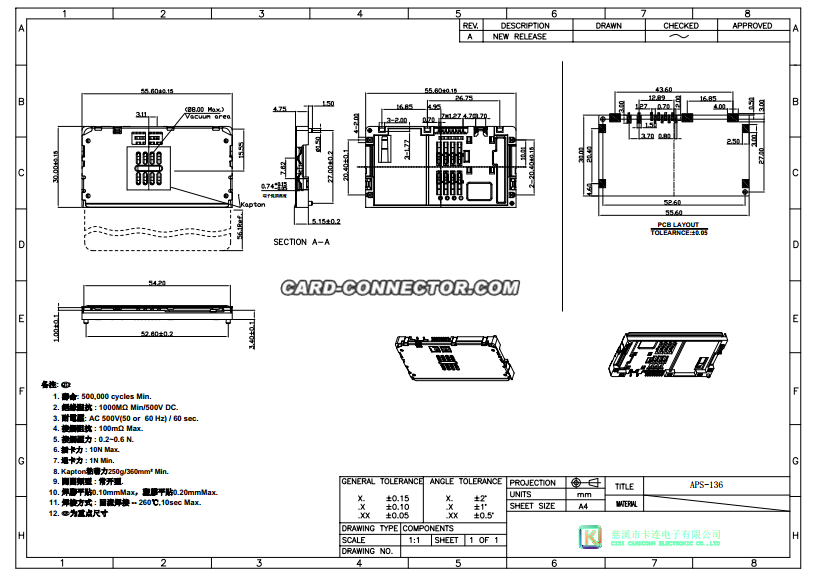

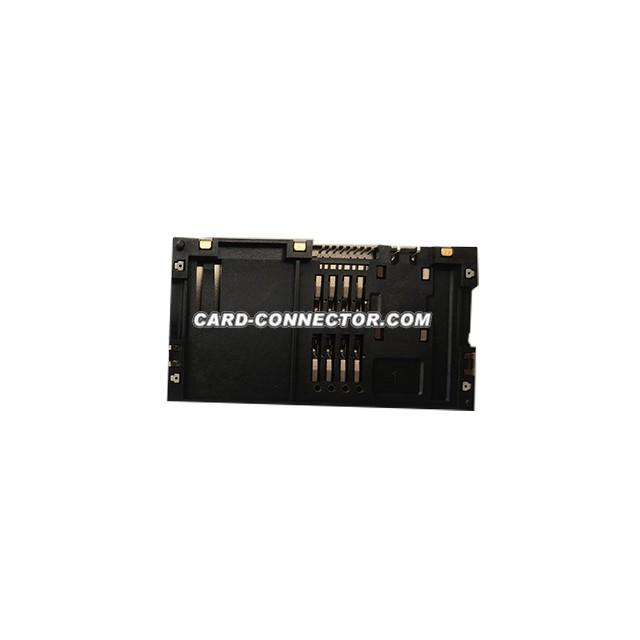

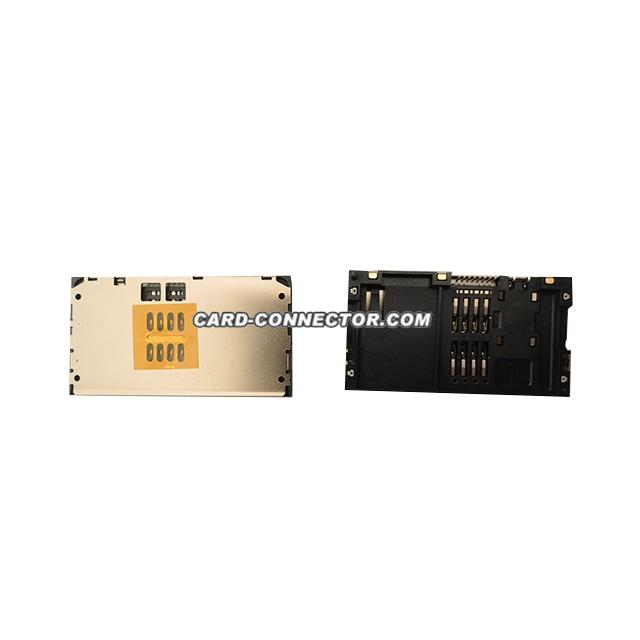

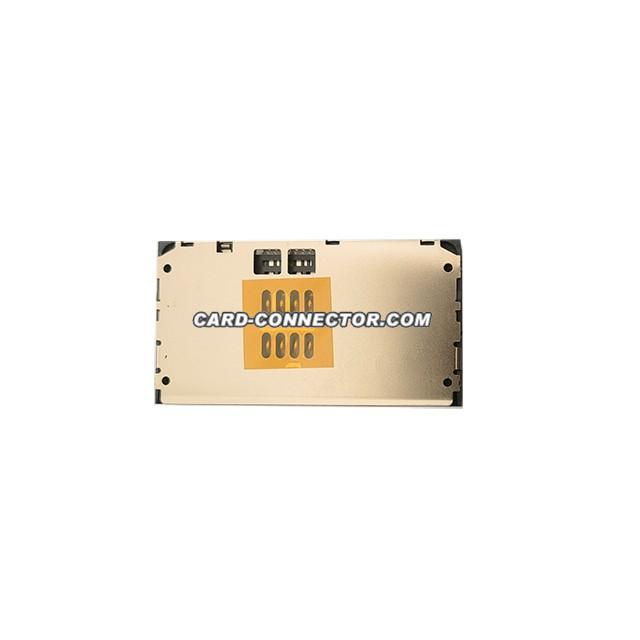

This is a derivative of SCC011E, with plastic pads. The height is 4.75mm, and the bottom of the socket card
is 3.4mm from the bottom of the card holder. It is a
smart card connector designed for financial POS machines,
model APS136.
NOTES:
1. Lifespan: 500,000 cycles Min.
2. Insulation resistance: 1000MΩ Min/500V DC.
3. Withstand voltage: AC 500V(50 or 60 Hz) / 60 sec.
4. Contact resistance: 100mΩ Max.
5. Contact pressure: 0.2~0.6 N.
6. Insertion force: 10N Max.
7. Card withdrawal force: 1N Min.
8. Kapton adhesion 250g/360mm² Min.
9. Switch type: normally open.
10. Welding foot flat paste 0.10mmMax, plastic flat paste 0.20mmMax.
11. Soldering method: reflow soldering -- 260℃,10sec Max.
